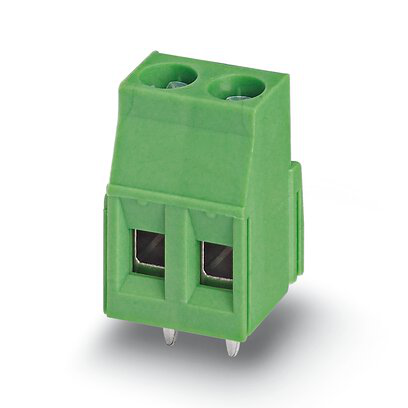

1044514 - MKDSN 2,5/16-5,08 BD:15-30 - PCB terminal block

1044514 - MKDSN 2,5/16-5,08 BD:15-30 - PCB terminal block

by Phoenix Contact
$289.62 - $289.62
$289.62
$289.62 - $289.62
$289.62

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 16, number of rows: 1, number of positions per row: 16, product range: MKDSN 2,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, number of solder pins per potential: 1



Specifications
Item Value
Country of Origin Germany
Nominal Current 24 A
Number Of Potentials 16
Number Of Rows 1
Product Range MKDSN 2
Pitch 5.08 mm
Connection Method Screw connection with tension sleeve
Mounting Wave Soldering
Color Green
