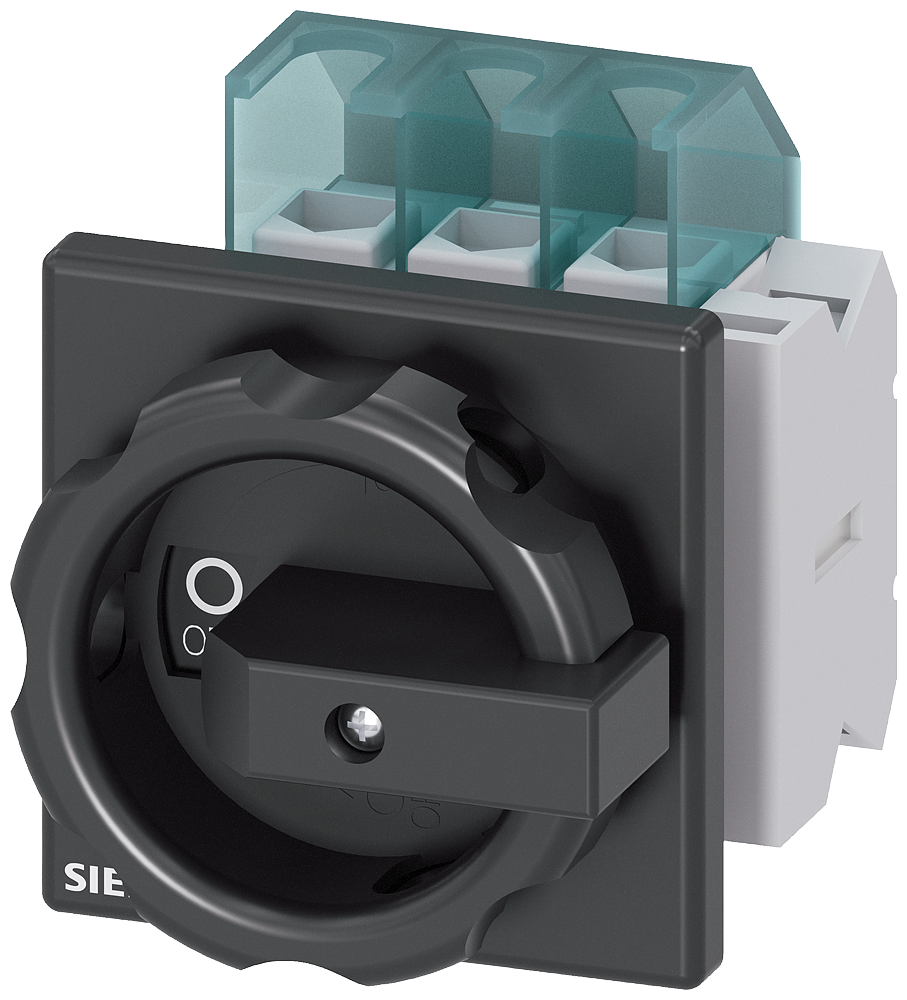

3LD2203-1TP51 - DISC SW 32A ROT HDL 4HOLE BLK 3P AUX
by Siemens
Original price
$48.67
-
Original price
$48.67
Original price
$48.67
$48.67
-
$48.67
Current price
$48.67
MAIN CONTROL SWITCH 3-POLE IU=32, P/AC-23A AT 400V=11.5KW 1NO+1NC, FRONT MOUNTING FOUR-HOLE MOUNTING ROTARY OPERATING MECHANISM BLACK
| Item | Value |
|---|---|
| Number of poles | 3 |
| Country of Origin | DE |
| Interlockable | true |
| Number of switches | 1 |
| Motor drive optional | false |
| Version as main switch | true |
| Colour control element | Black |
| Motor drive integrated | false |
| Version as safety switch | true |
| Voltage release optional | false |
| Rated permanent current Iu | 32.0 A |
| Degree of protection (NEMA) | Other |
| Version as reversing switch | false |
| Suitable for ground mounting | false |
| Max. rated operation voltage Ue AC | 690 V |
| Suitable for front mounting 4-hole | true |
| Suitable for front mounting centre | false |
| Type of control element | Short thumb-grip |
| Rated operation power at AC-3, 400 V | 10 kW |
| Degree of protection (IP), front side | IP65 |
| Rated operation power at AC-23, 400 V | 12 kW |
| Rated permanent current at AC-21, 400 V | 32 A |
| Rated permanent current at AC-23, 400 V | 22 A |
| Version as maintenance-/service switch | true |
| Version as emergency stop installation | false |
| Rated short-time withstand current lcw | 0.64 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Frame clamp |
| Device construction | Built-in device fixed built-in technique |
