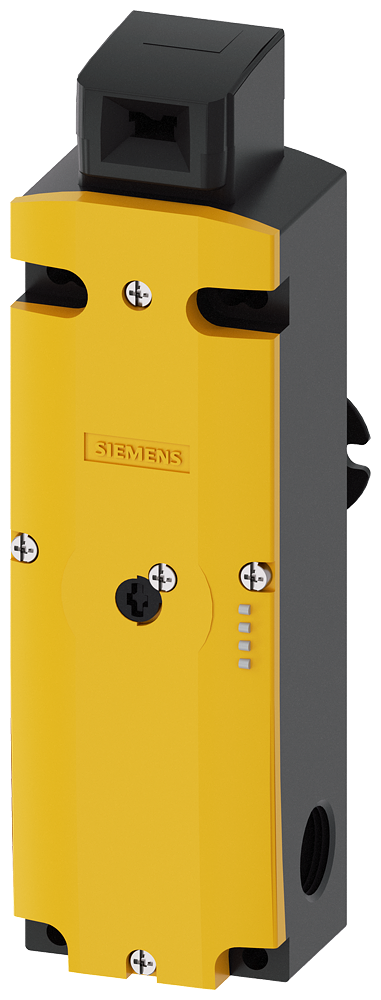

3SE5322-2SJ22 - INTERLOCK SW, MECH LK_SOL UNLK, 115VAC, LED
by Siemens
Original price
$362.22
-
Original price
$362.22
Original price
$362.22
$362.22
-
$362.22
Current price
$362.22
Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Spring-locked Emergency release at the rear and Auxiliary release on front Magnet voltage 115 V AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO LED display yellow/green Supplied without actuator. Actuator 3SE5000-0AV0. please order separately
Item | Value |
---|---|
Width sensor | 54 mm |
Country of Origin | DE |
Length of sensor | 185 mm |
Type of interface | None |
Height of sensor | 43.5 mm |
Coating housing | Uncoated |
Material housing | Plastic |
Guard locking force | 1300 N |
With escape release | false |
With status indication | true |
Degree of protection (IP) | IP65 |
Suitable for safety functions | true |
Number of safety auxiliary contacts | 4 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Rated operation current Ie at AC-15, 24 V | 6 A |
Rated operation current Ie at DC-13, 24 V | 3 A |
Type of switching contact | Slow-action switch |
Construction type housing | Special construction |
Ambient temperature during operating | -25 °C |
Type of interface for safety communication | None |
Rated operation current Ie at DC-13, 125 V | 0.55 A |
Type of electric connection | Cable entry metrical |
Type of guard locking | Quiescent current principle |
Rated control supply voltage Us magnet drive at AC 50 Hz | 115 V |
Rated control supply voltage Us magnet drive at AC 60 Hz | 115 V |
