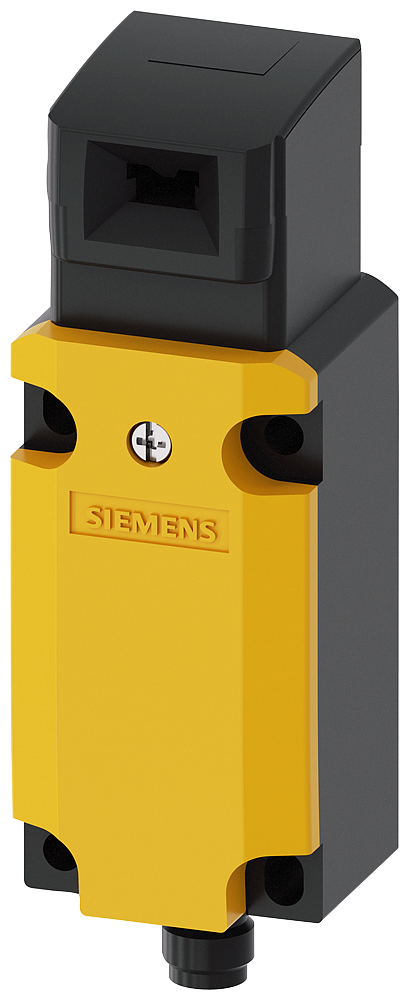

3SE5114-0QV10-1AE1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC
by Siemens
Original price
$99.99
-
Original price
$99.99
Original price
$99.99
$99.99
-
$99.99
Current price
$99.99
Safety position switch with separate actuator metal enclosure, 40 mm slow-action contacts 2 nc with m12 connector, plastic 5-pole, max. 125 V, 4 a, 2 nc connected, 5 directions of approach. the matching separate actuator 3SE5000-0av./w. must be ordered separately.
Item | Value |
---|---|
Width sensor | 40 mm |
Country of Origin | DE |
Forced opening | true |
Length of sensor | 124 mm |
Material housing | Metal |
Type of interface | None |
Height of sensor | 37.3 mm |
Coating housing | Lacquered |
With status indication | false |
Degree of protection (NEMA) | 12 |
Construction type housing | Cuboid |
Type of electric connection | Other |
Suitable for safety functions | true |
Degree of protection (IP) | IP66/IP67 |
Number of safety auxiliary contacts | 2 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Rated operation current Ie at AC-15, 24 V | 4 A |
Rated operation current Ie at DC-13, 24 V | 3 A |
Type of switching contact | Slow-action switch |
Number of contacts as normally open contact | 1 |
Rated operation current Ie at AC-15, 125 V | 4 A |
Ambient temperature during operating | -25 °C |
Number of contacts as normally closed contact | 2 |
Type of interface for safety communication | None |
Rated operation current Ie at DC-13, 125 V | 0.55 A |
