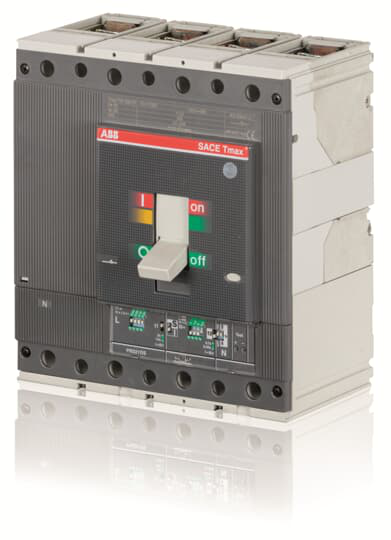

1SDA054324R1 - T5N 400 PR221DS-LS/I In=320 4p F F
by ABB
Original price
$1,082.24
-
Original price
$1,082.24
Original price
$1,082.24
$1,082.24
-
$1,082.24
Current price
$1,082.24
C.BREAKER TMAX T5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1056 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 942c8f6e-c737-4c71-9ec0-53435540f4f1 Italy (IT) |
Simplified SCIP | 2621458a-7cb1-4e44-9339-2889444af8e5 Norway (NO)663b45cc-d6b6-494f-aa53-852b5ab8bee8 Netherlands (NL)0e82c4d6-53b6-4f85-8f08-831b6d8d7580 Poland (PL)7c3e289e-19e2-402e-9c27-325c9c15ffdc Germany (DE)147b30d4-fb18-4045-a452-de4d4226e06b Germany (DE)65b3af10-ca94-476e-9e5b-656d9fb5a0db France (FR)81a9bbdd-4753-49a0-a17d-6c34be453c19 Denmark (DK)1d3cef6c-3280-4f74-b426-cfa8e674dc3a Germany (DE)606b6189-8d2b-4f64-be9e-2b58259b70f2 Czech Republic (CZ)7a8c5233-f1ed-4179-8182-1db49a671569 Croatia (HR)27c5f998-7f5b-48d0-8355-29c2dbeb2b7d Poland (PL)0ec071be-1c8e-43bd-9f8d-b6ee3093b5d9 Netherlands (NL)9750309c-9fcd-46d5-8524-7b0f231c3f7b Netherlands (NL)b2295b08-9ea8-492e-97a0-1976d8368156 Estonia (EE)0ad37cc0-18f4-4b90-89e5-d9b587df21e8 Greece (GR)7d83de72-f497-4743-bbfd-745dab36ba91 Portugal (PT)3b286cf6-3b68-493e-b94e-d08a84c3dc1a Bulgaria (BG)f273b749-2c92-4476-9e9e-8d8cf84437fb Sweden (SE)fc23117f-8a3d-41f5-813c-72681e4bcbbc Poland (PL)6d30586d-c7d5-4c8e-837b-748631db0155 Netherlands (NL)bf05e7bf-ba44-422a-bddd-c8192af105ed Spain (ES)c15d8ef4-d215-4bf1-bfcb-9569947fc511 Netherlands (NL)1544995c-c991-45c8-96a4-69d0e33b49a8 Finland (FI)33f805fc-5af4-4408-a13b-42424a136c21 France (FR)3afa97f1-a3c5-4254-9218-08a4a46d497b Sweden (SE)74e9aa82-664a-4aa3-b2c2-f08c94f74f5d Germany (DE) |
Item | Value |
---|---|
E-Number (Finland) | 3655336 |
E-Number (Sweden) | 3180376 |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 186 mm |
Product Net Height | 205 mm |
Product Net Depth / Length | 103.5 mm |
Product Net Weight | 6.2 kg |
Item | Value |
---|---|
Electrical Durability | 7000 cycle60 cycles per hour |
Mechanical Durability | 20000 cycle120 cycles per hour |
Number of Poles | 4 |
Power Loss | at Rated Operating Conditions per Pole 10.6 W |
Product Main Type | SACE Tmax T |
Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker |
Rated Current (In) | 320 A |
Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA |
Rated Uninterrupted Current (Iu) | 400 A |
Release | PR221DS-LS/I |
Release Type | EL |
Short-Circuit Performance Level | N |
Standards | IEC |
Sub-type | T5 |
Suitable For | T5 |
Suitable for Product Class | Moulded Case Circuit Breakers |
Terminal Connection Type | Fixed Circuit-BreakersFront |
Test Voltage Max (Utest) | 3500 V |
Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
Version | F |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
