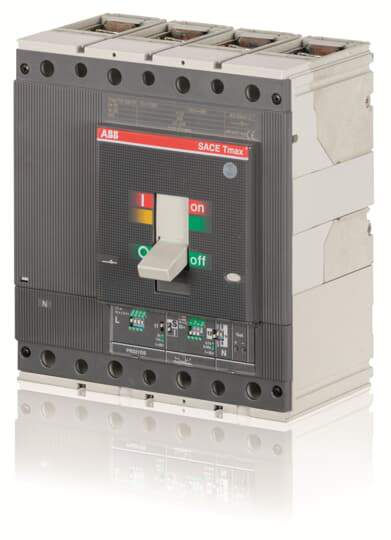

1SDA054408R1 - T5S 630 PR221DS-LS/I In=630 4p F F

1SDA054408R1 - T5S 630 PR221DS-LS/I In=630 4p F F

by ABB
$1,809.44 - $1,809.44
$1,809.44
$1,809.44 - $1,809.44
$1,809.44

C.BREAKER TMAX T5S 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Toxic Substances Control Act - TSCA 9AKK108467A8326

Environmental
Item Value
Environmental Information 9AKK10103A1056 9AKK108467A6707
REACH Declaration 9AKK108466A1425
RoHS Information 9AKK108466A1424
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP edf7545a-b426-417c-8643-2637381ea7fd Italy (IT)
Simplified SCIP 70ce8e61-73e4-4075-89e9-6f7eb9478e9b Netherlands (NL)3a453979-c531-47f9-b115-5b0153a3997d Spain (ES)1cb5f5b0-6597-471c-892c-7f25432bf5ac Netherlands (NL)a810abe9-39c7-4e91-901e-e0d25c26d312 Norway (NO)bf67cb76-fb74-4492-a166-c82669f969f7 Sweden (SE)c7511e70-f4d6-497b-ad2a-36460d34d697 Poland (PL)412c7edf-5d64-4884-b079-570d13586089 France (FR)f128d138-f010-4329-9018-180d61c5a101 Sweden (SE)6fc25fda-a2f1-4ac5-a25e-38607b819192 Germany (DE)de82e0e5-f42d-473d-98f1-cd57a8b09451 Germany (DE)d89ac2d8-bb6c-4fe9-a928-d3c922094310 France (FR)1fc81ee2-0806-4f89-9204-ef17a6c93004 Denmark (DK)7d75101e-33f0-460e-bd2a-650b1e38eb72 Netherlands (NL)e89d4f52-0ee3-4056-a139-2c5e1f0e6ecb Germany (DE)0ed34524-4da4-4cd3-8702-7c35c56da49d Germany (DE)4f84c457-fa74-49a0-8555-02ca3f2ba3af Croatia (HR)5c134c83-83c5-4f81-b279-06bbb5cb33be Czech Republic (CZ)c0d8317f-7bb3-4ffe-9b80-2b907375397d Poland (PL)183f5895-9cb3-47ea-a49d-1dd4ff77c5cf Netherlands (NL)2ea18f03-5a50-4360-85eb-0b1a08dbce5c Netherlands (NL)ced3404c-c917-4e6d-82eb-bc71689b267d Estonia (EE)fb9ec62c-08d7-4c51-a5b9-0538d5a31662 Greece (GR)e6c0b294-7bed-4c2c-b8f3-1b1bf235bd5b Portugal (PT)ef6d979a-77aa-4c21-a0fe-732a491b14c3 Bulgaria (BG)c91b4e53-6a2f-48f6-830e-e0b8fe2661f8 Poland (PL)93fd3af3-f7a7-45b7-ade7-4ad7d8844233 Finland (FI)

Ordering
Item Value
E-Number (Finland) 3655341
E-Number (Sweden) 3180388
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Dimensions
Item Value
Product Net Width 186 mm
Product Net Height 205 mm
Product Net Depth / Length 103.5 mm
Product Net Weight 6.047 kg

Additional Information
Item Value
Electrical Durability 5000 cycle60 cycles per hour
Mechanical Durability 20000 cycle120 cycles per hour
Number of Poles 4
Power Loss at Rated Operating Conditions per Pole 41 W
Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Rated Current (In) 630 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
Rated Uninterrupted Current (Iu) 630 A
Release PR221DS-LS/I
Release Type EL
Short-Circuit Performance Level S
Standards IEC
Sub-type T5
Suitable For T5
Suitable for Product Class Moulded Case Circuit Breakers
Terminal Connection Type Fixed Circuit-BreakersFront
Test Voltage Max (Utest) 3500 V
Test Voltage at Industrial Frequency for 1 Minute 3500 V
Version F

Classifications
Item Value
ETIM 9 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code Q
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409
