1SDA071798R1 - E4.2H 3200 Ekip Hi-Touch LSI 4p F HR
by ABB
Original price
$12,775.39
-
Original price
$12,775.39
Original price
$12,775.39
$12,775.39
-
$12,775.39
Current price
$12,775.39

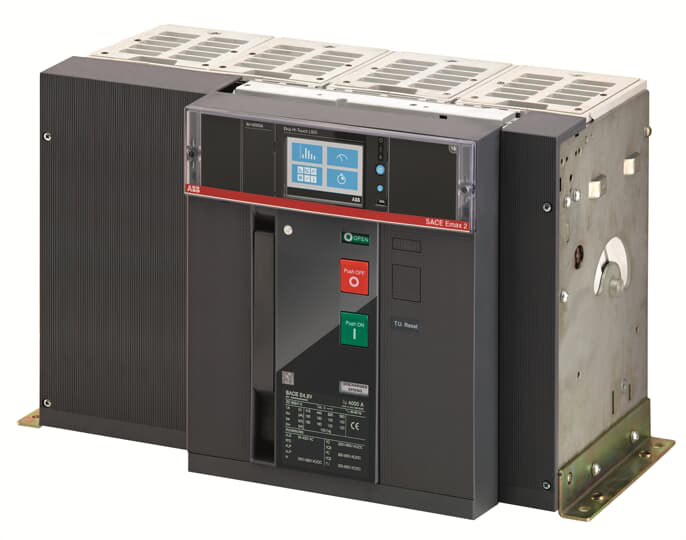

C.BREAKER SACE EMAX2 E4.2H 3200 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 3200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2363 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1904 9AKK108468A1910 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 9d176fac-e423-4c28-be3f-ecdce558cc7d Italy (IT) |
| Simplified SCIP | 2fb1705c-ae7f-40d8-bba9-5d9c73685f1c Czech Republic (CZ)90efdeb2-b283-4983-9e03-38d13d88e73f Hungary (HU)e92baac9-a576-434b-976b-6d327b3f5848 Norway (NO)141df488-3458-49b1-baeb-61b6bedb3bcf Poland (PL)a871fbc2-9b5b-46a3-90c9-2ff87ed23518 Croatia (HR)7aeba3ba-99e2-407a-b8e2-233261148760 France (FR)687ded11-f7e4-4955-97b8-8ee98b36dd1b Germany (DE)a848bb63-dca6-4184-b027-39f03a3c9a4e Denmark (DK)b275fb27-e01a-4e1b-8c84-891ed735034d Germany (DE)0c399ff1-cf11-48c5-b80a-1eeffeca1805 Netherlands (NL)a1c9b47c-e98a-42d3-b2b6-cd39968bd176 Greece (GR)0eb2a150-e92a-4360-ab02-a24e6aee0a47 Estonia (EE)789d1956-e40f-4cc9-91fa-0b2854fc8de2 France (FR)d2bde273-90ec-40d7-9436-c03b86ea1a2e Finland (FI)25b6adb0-8705-4db2-94dc-40d7e4175929 Belgium (BE)4b806aef-e9c6-4807-8b7f-aa8b7c3357d2 Sweden (SE)5806c60e-b35c-431d-b979-fb55e7a91662 Germany (DE)e39437fa-171f-4c4d-a04f-95c3bc7f7389 Germany (DE)66afbb2e-54a1-4fa3-9142-e3743982684d Portugal (PT)d468ca6d-b1e4-4d75-a7a2-8455609222e8 Bulgaria (BG)5cf882a8-ebd6-44e1-85c3-521c77f7ab87 Sweden (SE)3f37c7f2-59bf-464e-a343-b22e7f8e1e67 Poland (PL)082e5152-4d8d-4c56-85ce-0b672d0fc8cc Poland (PL)d8c8c7ce-4135-496d-a2b3-4ae5d0901b1b Belgium (BE)32dc418a-bb68-4487-83a0-f74d76947956 Spain (ES)01a1bf07-5fd9-4d7b-8f16-b039db5822f5 Hungary (HU) |
| Item | Value |
|---|---|
| Order Code US and Canada | ZCHVENBJ200A000000XX |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 70 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 7000 cycleUe = 500 ... 690 V 7000 cycle20 cycles per hour |
| Mechanical Durability | 20000 cycle60 cycles per hour |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4 |
| Power Loss | 425 W |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 85 kAfor 3 s 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Hi-Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0197 |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
