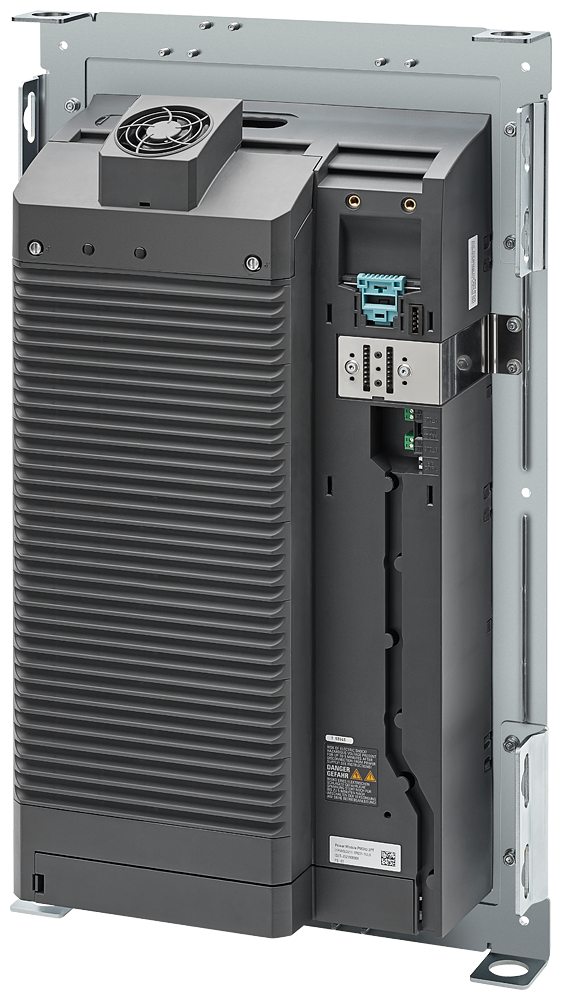

6SL32111PE311UL0 - SINAMICS PM240-2 PT-FSE-U-400V-55kW
by Siemens
Original price
$7,733.13
-
Original price
$7,733.13
Original price
$7,733.13
$7,733.13
-
$7,733.13
Current price
$7,733.13
SINAMICS G120 POWER MODULE PM240-2 Push Through. WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S.150% 57S.100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S.110% 57S.100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 615x354x237 (HXWXD). FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6
| Item | Value |
|---|---|
| Country of Origin | DE |
| Depth | 237 mm |
| Width | 354 mm |
| Height | 615 mm |
| Mains voltage | 380 V |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Max. output frequency | 550 Hz |
| Type of converter | U converter |
| Degree of protection (IP) | IP20 |
| Nominal output current I2N | 110 A |
| 4-quadrant operation possible | false |
| Integrated breaking resistance | true |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 5 % |
| Application in industrial area permitted | false |
| Max. output at linear load at rated output voltage | 45 kW |
| Max. output at quadratic load at rated output voltage | 55 kW |
| Application in domestic- and commercial area permitted | false |
