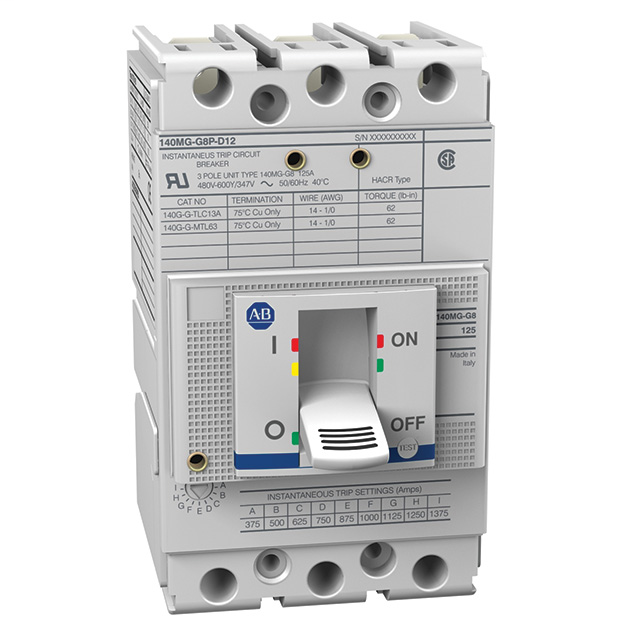

140MG-H8P-D12-SJ - 140MG-H8P-D12-SJ - 140MG Motor Circuit Protector & Motor Protection Circuit Breaker
Original price
$952.36
-
Original price
$952.36
Original price
$952.36
$952.36
-
$952.36
Current price
$952.36
140MG - Motor Circuit Protectors, H frame, 35..65 kA at 480V, MCP (magnetic only), Rated Current 125 A, Shunt Trip 24...30V AC/DC
| Item | Value |
|---|---|
| Bulletin Number | 140MG - Motor Circuit Protectors |
| Protection Type | MCP (magnetic only) |
| Frame Size | H frame |
| Rated Operational Current Ie(A) | 125 A |
| Item | Value |
|---|---|
| Assembly | Factory Assembled |
| Item | Value |
|---|---|
| Shunt Trip(SNT) and Undervoltage Release(UVT), Left Side Mounting | Shunt open release |
| Control Voltage | 24..30V AC/DC |
Link to Literature Library for Selectivity Guide
Link to Literature Library for Installation Instructions
Link to Literature Library for Tech Data
2-Dimensional Drawing (DWG/DXF)
2-Dimensional Drawing (PDF)
3-Dimensional STEP model (STP)
