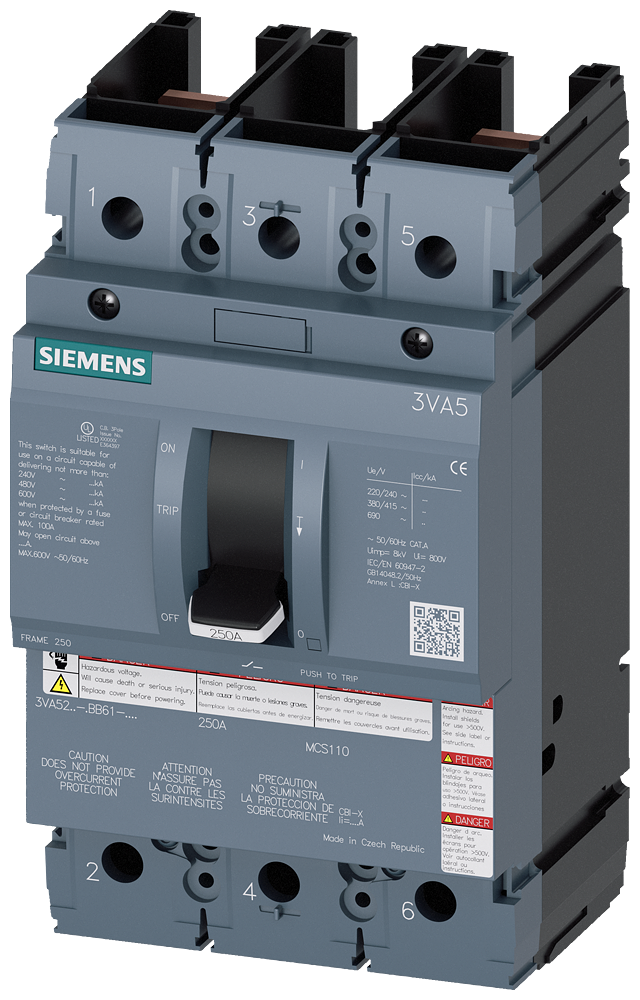

3VA5210-1BB61-0AA0 - MCSW 3VA52 2(3)P 100A 100KA
by Siemens
Original price
$364.63
-
Original price
$364.63
Original price
$364.63
$364.63
-
$364.63
Current price
$364.63
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE SWITCH WITH SELF-PROTECTING INSTANTANEOUS TRIP UNIT. 3VA52 FRAME. 100A 2(3)-POLE (100KA AT 480V). SPECIAL FEATURES: WITHOUT LUGS. DIMENSIONS (W x H x D) IN: 4.1 x 7.3 x 4.2.
| Item | Value |
|---|---|
| Number of poles | 2 |
| Country of Origin | CZ |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 100 A |
| With switched-off indicator | false |
| Type of control element | Rocker lever |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Type of electrical connection of main circuit | Other |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Other |
| Adjustment range undelayed short-circuit release | 2500 A |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Device construction | Built-in device fixed built-in technique |
