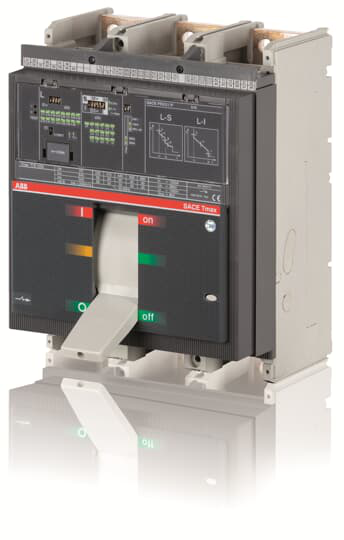

1SDA062994R1 - T7S 1600 PR231/P LS/I In=1600A 3p F F
by ABB
Original price
$2,866.02
-
Original price
$2,866.02
Original price
$2,866.02
$2,866.02
-
$2,866.02
Current price
$2,866.02
C.BREAKER TMAX T7S 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3a52316f-e07d-4f5c-88f2-711bdb1346a4 Italy (IT) |
| Simplified SCIP | 273a0132-4a7c-4b0a-9695-317da4294f66 Germany (DE)92b1fc60-9653-4fc6-9afb-918916a34fbf Portugal (PT)e39ea68a-d5d3-4612-968c-ac4333ac1a23 Bulgaria (BG)ac8c9f97-60e9-49d8-b157-e5314214a7a0 Czech Republic (CZ)f98bef0e-6cb6-4e36-8ea8-6736489db6f8 Netherlands (NL)d3cb5f06-015c-42ce-9f0f-89b8bfc82164 Poland (PL)50af0b57-4662-46dd-9e5b-91ee5f05a4d8 Netherlands (NL)ad738e4f-ebdb-43a9-b632-9127c0223f6c Greece (GR)49ac3e7e-8393-4fa9-9050-e8cb51a256de Estonia (EE)4f699951-7c96-42c1-a5f4-ff5f6d7a9919 Croatia (HR)bd80ae94-2cf3-4519-8bc4-009234622696 Germany (DE)b2b23700-faa7-491b-a0d1-e2581c45bde0 Netherlands (NL)e3c6ddd6-f395-40e2-91fa-b919865aea15 Norway (NO)aa5adb61-a9f1-4356-a125-ac65449b2a16 Denmark (DK)213d321d-6a00-410a-a261-6959d85f284e Poland (PL)97011884-6672-4640-89a7-4eae5263ccae France (FR)3776e198-f919-415b-ac66-0c3561cf8c7f Sweden (SE)ea9ddeb0-697b-44bb-979c-9fa3533796d3 Germany (DE)003882ef-bdd5-4c1e-a552-d963a7cbee9d Netherlands (NL)74f5cf01-cd12-43e5-bb25-ddbe4882590b Sweden (SE)bf04a5e8-194c-4e2f-9e3f-04c786588946 Poland (PL)dc1bb341-e438-4906-9dd2-2f44b7a6d81c Germany (DE)fd1a8446-1ac2-42dc-9f86-42af4ec87dea Spain (ES)4f8976aa-f330-471d-bc3e-b4b804c406f2 France (FR)ef87ba31-ee9a-446e-926d-ad7e46c274e0 Netherlands (NL)a6498c33-c7ba-408e-984a-1036319f1550 Finland (FI) |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 13.614 kg |
| Item | Value |
|---|---|
| Electrical Durability | 2000 cycle60 cycles per hour |
| Gross Volume | 35,280 cm³ |
| Mechanical Durability | 10000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 77 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| RoHS Date | NA |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
