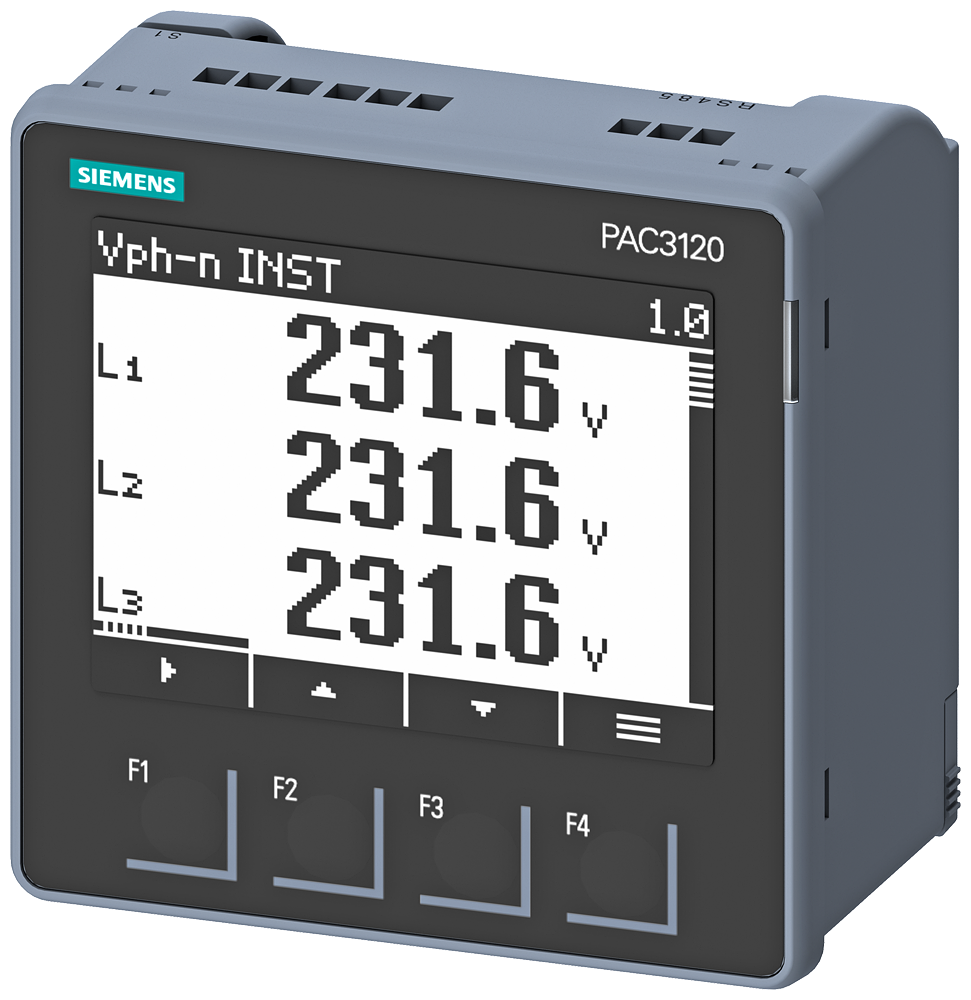

7KM3120-1BA01-1EA0 - PAC3120, DISPLAY, 20-60VDC, 2DI/DO, RS485
by Siemens
Original price
$331.50
-
Original price
$331.50
Original price
$331.50
$331.50
-
$331.50
Current price
$331.50
PAC3120 LCD 96 x 96 mm, Panel Mount Power Meter, 24-60 VDC only, 100+ Measurements, THD harmonics, 2-Dig In <(>&<)> 2-Dig Out, Modbus RTU. U rated input: 690/400V 45-65Hz IE rated input: X/1A oder X/5A AC Power supply: 24 ... 60 V -20/+10 % DC screw connections
Item | Value |
---|---|
Country of Origin | DE |
Depth | 56 mm |
EF015385 | 3 |
EF015388 | 3 |
Width | 96 mm |
Height | 96 mm |
EF015391 | true |
EF015392 | true |
EF015390 | false |
Voltmeter | true |
Ampere meter | true |
Pulse counter | true |
Frequency meter | true |
Supply voltage DC | 24 V |
Blind power meter | true |
Ethernet-connections | 0 |
Number of digital inputs | 2 |
Number of analogue inputs | 0 |
Number of digital outputs | 2 |
Number of analogue outputs | 0 |
Rotational speed meter | false |
Supply voltage AC 50 Hz | 400 V |
Supply voltage AC 60 Hz | 690 V |
Supporting protocol for MODBUS | true |
Supporting protocol for PROFIBUS | false |
Effective power measurement device | true |
Supporting protocol for PROFINET IO | false |
