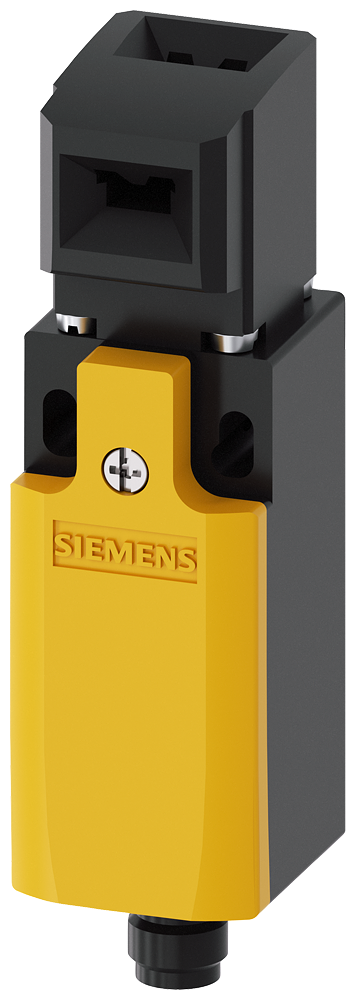

3SE5234-1RV40-1AF3 - INTERLOCK SW, TOP&SIDE ENTRY, 1NO+1NC, 2LED
by Siemens
Original price
$84.96
-
Original price
$84.96
Original price
$84.96
$84.96
-
$84.96
Current price
$84.96
Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC slow-action contacts with M12 connector, 5-pole, fixed and 2 LEDs yellow/green 24 V DC, 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=ground LED The matching separate actuator 3SE5000-0AV0. must be ordered separately
Item | Value |
---|---|
Country of Origin | DE |
Width sensor | 31 mm |
Forced opening | true |
Coating housing | Other |
Height of sensor | 33 mm |
Length of sensor | 104 mm |
Type of interface | None |
Material housing | Plastic |
With status indication | true |
Degree of protection (IP) | IP65 |
Degree of protection (NEMA) | 12 |
Construction type housing | Cuboid |
Type of electric connection | Other |
Suitable for safety functions | true |
Number of safety auxiliary contacts | 1 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Rated operation current Ie at DC-13, 24 V | 3 A |
Type of switching contact | Slow-action switch |
Number of contacts as normally open contact | 1 |
Ambient temperature during operating | -25 °C |
Number of contacts as normally closed contact | 1 |
Type of interface for safety communication | None |
