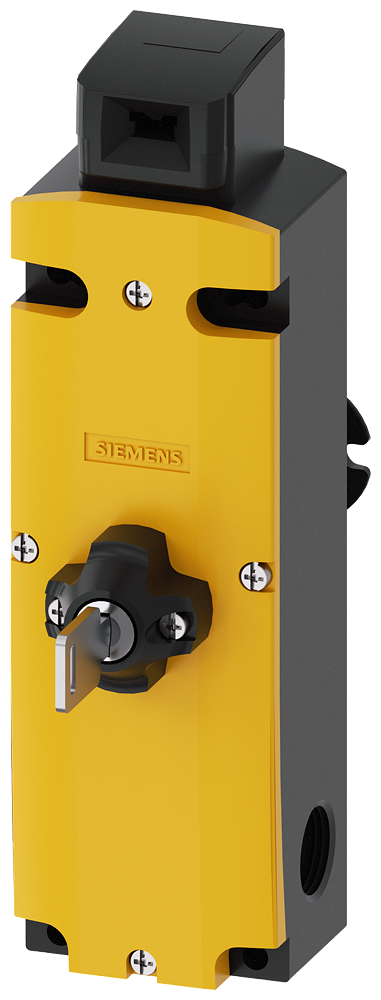

3SE5322-0SH21 - POS.SWITCH W. TUMBLER W.ESCAPE REL.+LOCK
by Siemens
Original price
$360.98
-
Original price
$360.98
Original price
$360.98
$360.98
-
$360.98
Current price
$360.98
SAFETY POSITION SWITCHES WITH SOLENOID INTERLOCKING LOCK. FORCE 1300N,5 APPR. DIR. METAL HOUSING,3X(M20X1.5) SPRING-LOCKED, ESCAPE RELEASE FROM REAR AND AUX. RELEASE WITH LOCK ON FRONT, MAGNET VOLTAGE 24V DC, MONITOR. OF ACTUATOR 2NC/1NO, MONITOR. OF MAGNET 2NC/1NO
Item | Value |
---|---|
Country of Origin | DE |
Width sensor | 54 mm |
Length of sensor | 185 mm |
Type of interface | None |
Height of sensor | 43.5 mm |
Coating housing | Uncoated |
Material housing | Plastic |
With escape release | true |
Guard locking force | 1300 N |
With status indication | false |
Degree of protection (IP) | IP65 |
Suitable for safety functions | true |
Number of safety auxiliary contacts | 4 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Rated operation current Ie at AC-15, 24 V | 6 A |
Rated operation current Ie at DC-13, 24 V | 3 A |
Type of switching contact | Slow-action switch |
Construction type housing | Special construction |
Ambient temperature during operating | -25 °C |
Type of interface for safety communication | None |
Rated operation current Ie at DC-13, 125 V | 0.55 A |
Type of electric connection | Cable entry metrical |
Type of guard locking | Quiescent current principle |
Rated control supply voltage Us magnet drive at DC | 24 V |
