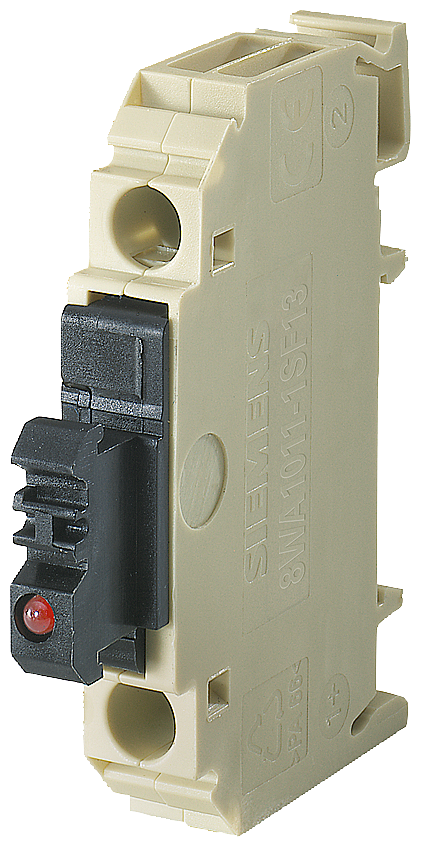

8WA1011-1SF13 - TERM BLOCK, SCREW, FUSE, 1.5
by Siemens
Original price
$9.08
-
Original price
$9.08
Original price
$9.08
$9.08
-
$9.08
Current price
$9.08
TERM BLOCK,SCREW,FUSE,1.5 5X20MM AND 5X25MM WITH LED 24V FOR G FUSE LINK SCREW CONNECTION FUSE TERMINAL
Item | Value |
---|---|
Height | 42 mm |
Country of Origin | DE |
Colour | Other |
Number of levels | 1 |
Rated voltage | 250 V |
Rated current In | 6.3 A |
Closing plate required | false |
Type of fuse holder | Pluggable |
Type of fuse insert | G-fuse 5x25 mm |
Material insulation body | Thermoplastic |
Supply voltage for defect-indication | 24 V |
Voltage type for defect indication | AC/DC |
Mounting method | DIN rail (top hat rail) 35 mm |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Type of indication element for defect indication | LED |
Connectable conductor cross section solid-core | 1 mm² |
Connectable conductor cross section multi-wired | 1.5 mm² |
Inflammability class of insulation material acc. with UL94 | Other |
Connectable conductor cross section fine-strand with cable end sleeve | 0.75 mm² |
