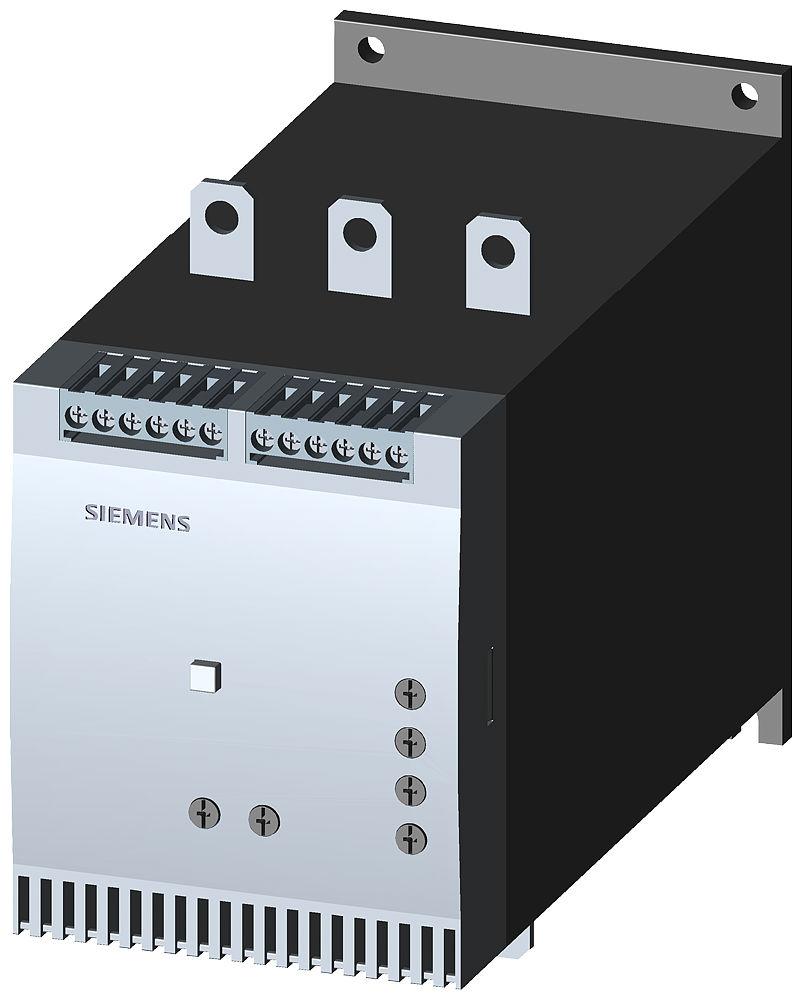

3RW4056-6BB45 - SOFT START, 145A, 100/150/HP, 230V, SCRW
by Siemens
Original price
$2,428.97
-
Original price
$2,428.97
Original price
$2,428.97
$2,428.97
-
$2,428.97
Current price
$2,428.97
Screw terminals 400-600 V AC, 230 V AC, 162 a, 110 KW/500 V, 40 deg., SIRIUS soft starter, s6
| Item | Value |
|---|---|
| Country of Origin | CZ |
| With display | false |
| Release class | Other |
| Internal bypass | true |
| Torque control | false |
| Function | Single direction |
| Voltage type for actuating | AC |
| Degree of protection (IP) | IP00 |
| Rated operating voltage Ue | 400 V |
| Integrated motor overload protection | true |
| Rated control supply voltage Us at AC 50HZ | 230 V |
| Rated control supply voltage Us at AC 60HZ | 230 V |
| Rated operation current Ie at 40 °C Tu | 162 A |
| Rated power three-phase motor, inline, at 400 V | 90 kW |
| Rated surrounding temperature without derating | 40 °C |
