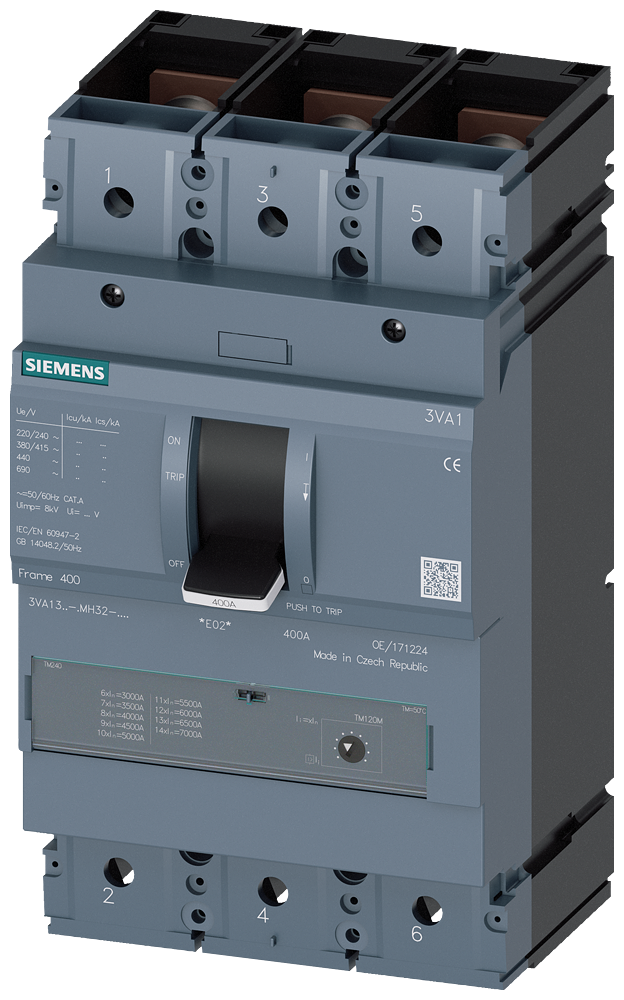

3VA1332-7MH32-0AA0 - BRKR 3VA13 3P 0 110KA MCP HI NUT

3VA1332-7MH32-0AA0 - BRKR 3VA13 3P 0 110KA MCP HI NUT

by Siemens
$1,099.38 - $1,099.38
$1,099.38
$1,099.38 - $1,099.38
$1,099.38

SIEMENS LOW VOLTAGE 3VA IEC MOTOR CIRCUIT PROTECTOR WITH THERMAL - MAGNETIC TRIP UNIT. 3VA13 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 0A 3-POLE Icu: (6KAIC AT 600V) (110KAIC AT 415V). HIGH RANGE TM120M TRIP UNIT WITH ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.4 x 9.8 x 5.4.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 320 A
With switched-off indicator false
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Number of auxiliary contacts as change-over contact 0
Adjustment range undelayed short-circuit release 2240 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Type of electrical connection of main circuit Screw connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 110 kA

General Product Approval/CCC
Manufacturer
General Product Approval/EAC
EAC
other/Confirmation
Manufacturer
other/Confirmation
Manufacturer
For use in hazardous locations
IECEx
DEKRA EXAM
