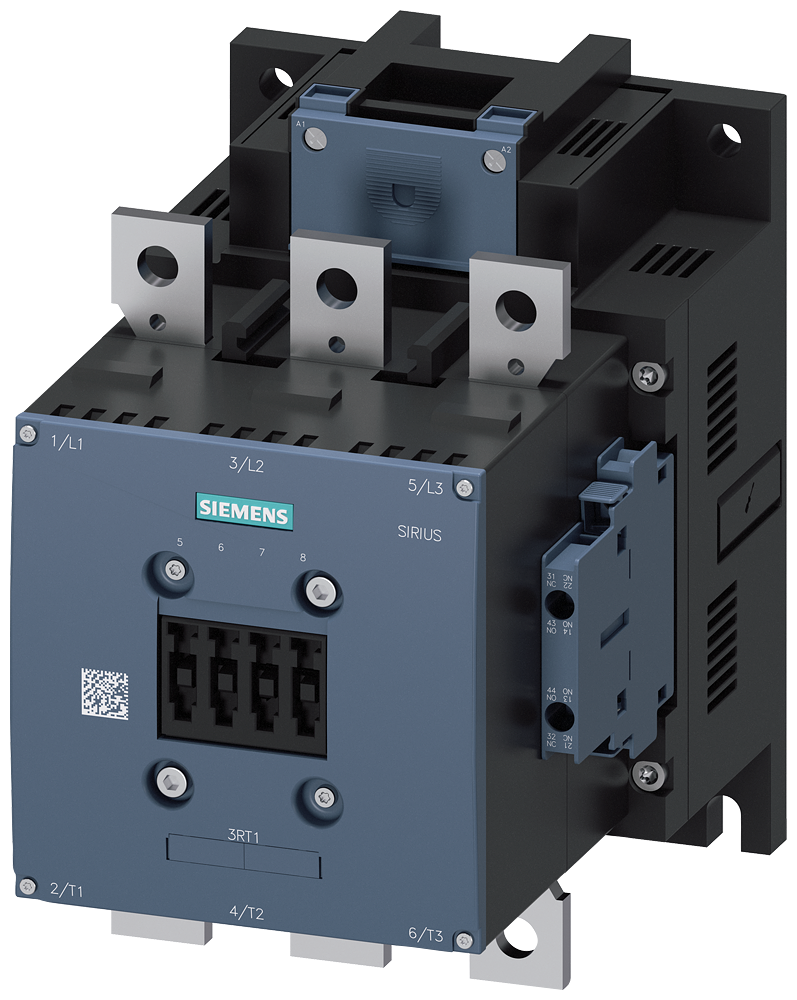

3RT1066-6AR36 - CONTACTOR S10 300A 440-480VUC 3P BAR
by Siemens
Original price
$1,125.51
-
Original price
$1,125.51
Original price
$1,125.51
$1,125.51
-
$1,125.51
Current price
$1,125.51
Drive conventional rail connections 3-pole, size s10 auxiliary contacts 2NO+2NC AC/DC operation 440-480v uc contactor, 160KW/400v/AC-3
Item | Value |
---|---|
Modular version | true |
Country of Origin | DE |
Voltage type for actuating | AC/DC |
Rated operation power NEMA | 183.8746875 kW |
Rated control supply voltage Us at DC | 440 V |
Rated operation power at AC-3, 400 V | 160 kW |
Rated operation power at AC-4, 400 V | 160 kW |
Rated operation current Ie at AC-1, 400 V | 330 A |
Rated operation current Ie at AC-3, 400 V | 300 A |
Rated operation current Ie at AC-4, 400 V | 280 A |
Rated control supply voltage Us at AC 50HZ | 440 V |
Rated control supply voltage Us at AC 60HZ | 440 V |
Number of main contacts as normally open contact | 3 |
Number of auxiliary contacts as normally open contact | 2 |
Number of auxiliary contacts as normally closed contact | 2 |
Type of electrical connection of main circuit | Rail connection |
