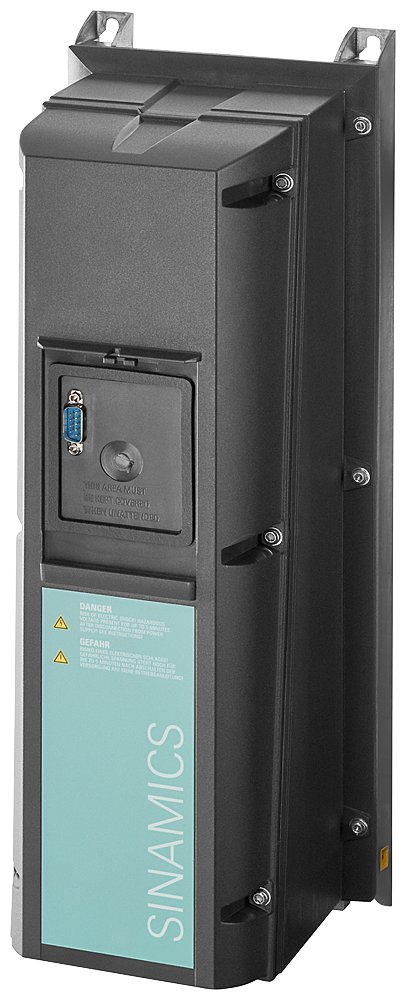

6SL32230DE155BG1 - SINAMICS PM230-IP55-FSA-B-400V 0.55KW
by Siemens
Original price
$650.90
-
Original price
$650.90
Original price
$650.90
$650.90
-
$650.90
Current price
$650.90
SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. B FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 0.55KW FOR 150% 3S.110% 57S.100% 240S AMBIE. TEMP -10 TO+40 DEG C(LO) 460 X 154 X 249 (HXBXT). FSA WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2
| Item | Value |
|---|---|
| Country of Origin | GB |
| Depth | 249 mm |
| Width | 154 mm |
| Height | 460 mm |
| Mains voltage | 380 V |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Max. output frequency | 550 Hz |
| Type of converter | U converter |
| Degree of protection (IP) | IP55 |
| Nominal output current I2N | 1.7 A |
| 4-quadrant operation possible | false |
| Integrated breaking resistance | false |
| Application in industrial area permitted | true |
| Relative symmetric net frequency tolerance | 5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Max. output at linear load at rated output voltage | 0.37 kW |
| Application in domestic- and commercial area permitted | true |
| Max. output at quadratic load at rated output voltage | 0.55 kW |
