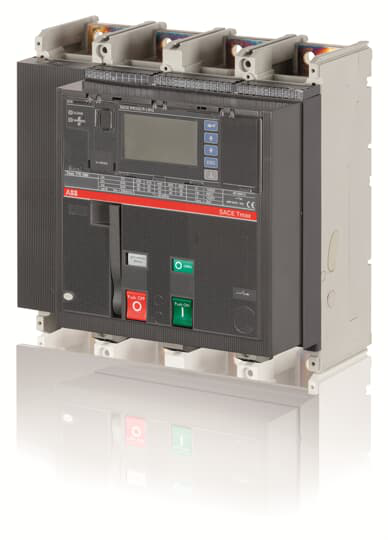

1SDA063055R1 - T7H 1600 PR332/P LSIG In=1600A 4p F F M

1SDA063055R1 - T7H 1600 PR332/P LSIG In=1600A 4p F F M

by ABB
$6,730.49 - $6,730.49
$6,730.49
$6,730.49 - $6,730.49
$6,730.49

C.BREAKER TMAX T7H 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LSIG R 1600



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Toxic Substances Control Act - TSCA 9AKK108467A8326

Environmental
Item Value
Environmental Information 9AKK10103A1059 9AKK108467A6707
REACH Declaration 9AKK108466A1425
RoHS Information 9AKK108466A1424
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Ordering
Item Value
Order Code US and Canada T7MHFC4AS000000XX
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Dimensions
Item Value
Product Net Width 280 mm
Product Net Height 268 mm
Product Net Depth / Length 178 mm
Product Net Weight 14 kg

Additional Information
Item Value
Electrical Durability 2000 cycle60 cycles per hour
Mechanical Durability 10000 cycle60 cycles per hour
Number of Poles 4
Power Loss at Rated Operating Conditions per Pole 77 W
Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Rated Current (In) 1600 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
Rated Uninterrupted Current (Iu) 1600 A
Release PR332/P LSIG
Release Type EL
Short-Circuit Performance Level H
Standards IEC
Sub-type T7
Suitable For T7M
Suitable for Product Class Moulded Case Circuit Breakers
Terminal Connection Type Fixed Circuit-BreakersFront
Version F

Classifications
Item Value
ETIM 9 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code Q
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409
