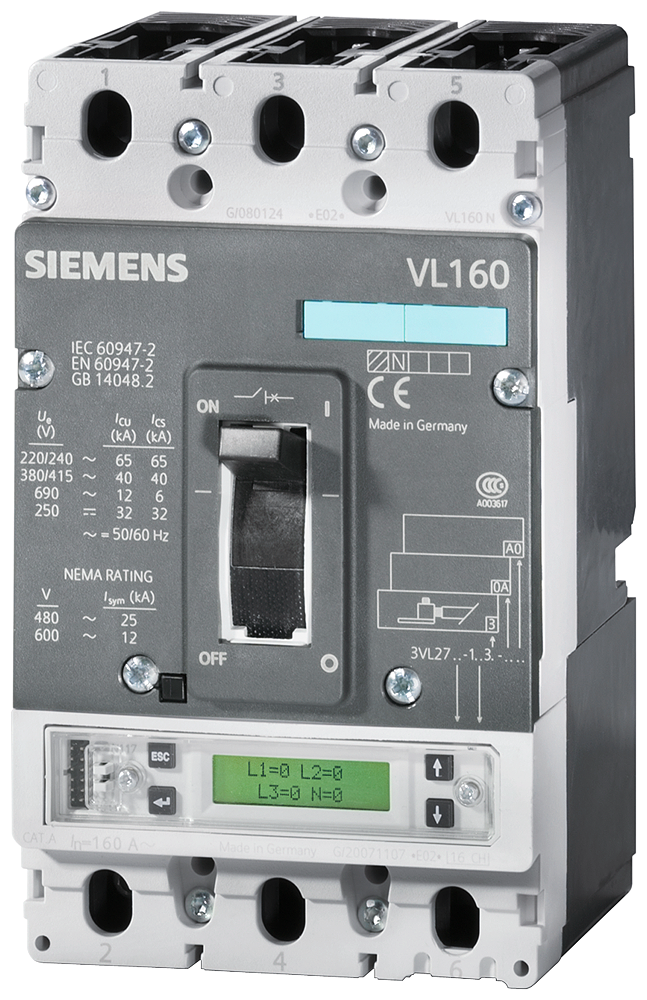

3VL1115-2KE30-0AA0 - BREAKER VL CG 150A 3P MOLDED CASE SWITCH

3VL1115-2KE30-0AA0 - BREAKER VL CG 150A 3P MOLDED CASE SWITCH

by Siemens
$866.27 - $866.27
$866.27
$866.27 - $866.27
$866.27

CIRCUIT BREAKER VL 150X UL, TYPE CG (CAT NO. HCS3S150) NON-INTERCHANGEABLE FRAME W/APPROVAL CIRCUIT BREAKER TO UL489 HIGH BREAKING CAPACITY 3-POLE, NEMA RATING 65KA/480V (MOLDED CASE SWITCH) MAGNETIC OVERCURRENT TRIP UNIT TU=40DEGR CELSIUS IN=<(><<)>150A RATED CURRENT II=1800A SHORT-CIRCUIT PROT. W/O CONNECTION ACCESSORIES WITHOUT AUXILIARY RELEASE WITHOUT AUXILIARY/ALARM SWITCH



Specifications
Item Value
Number of poles 3
Country of Origin DE
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP20
With switched-off indicator false
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique

Spec Sheet
