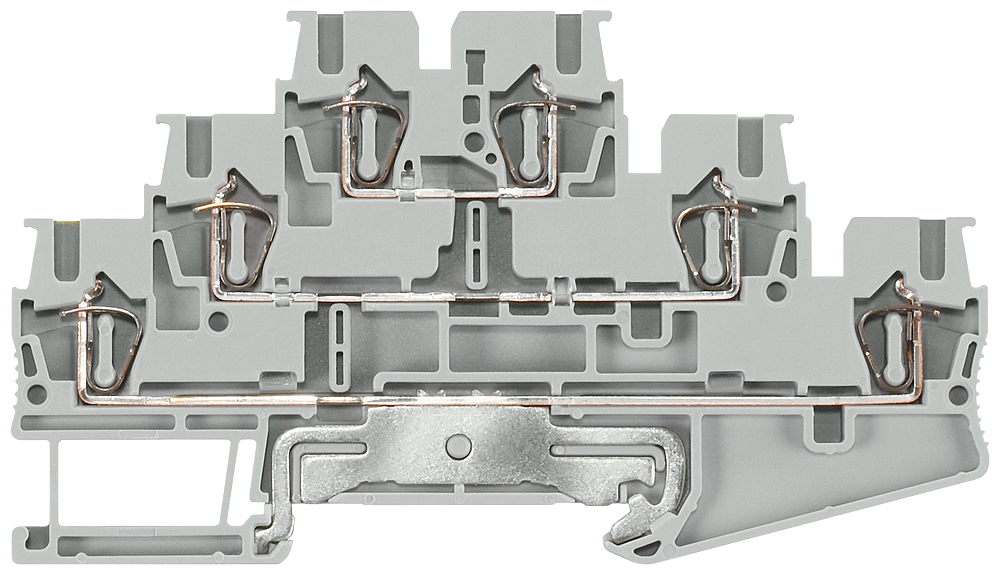

8WH2030-4EF00 - TERM, SPRING, 3-TIER, SZ 2.5, GRAY, GND L N
by Siemens
Original price
$5.77
-
Original price
$5.77
Original price
$5.77
$5.77
-
$5.77
Current price
$5.77
TERM,SPRING,3-TIER,SZ 2.5,GRAY,GND L N THREE-TIER TERM.2,5 MM2 PE,L,N
Item | Value |
---|---|
Country of Origin | DE |
Colour | Grey |
Width | 5.2 mm |
Depth | 56.45 mm |
Height | 99.48 mm |
Number of levels | 3 |
Rated voltage | 500 V |
Rated current In | 22 A |
Closing plate required | true |
Material insulation body | Other |
Internally connected stages | false |
Operation temperature | -105 °C |
Number of clamp positions per level | 2 |
Mounting method | DIN rail (top hat rail) 35 mm |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Connectable conductor cross section solid-core | 0.08 mm² |
Inflammability class of insulation material acc. with UL94 | V0 |
Connectable conductor cross section fine-strand with cable end sleeve | 0.14 mm² |
Connectable conductor cross section fine-strand without cable end sleeve | 0.08 mm² |
