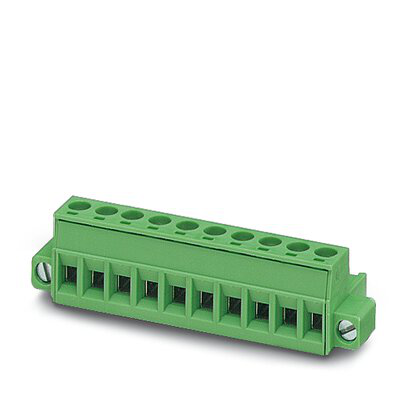

1081007 - MSTB 2,5/ 8-STF BD:17-24 SO - PCB connector

1081007 - MSTB 2,5/ 8-STF BD:17-24 SO - PCB connector

by Phoenix Contact
$281.47 - $281.47
$281.47
$281.47 - $281.47
$281.47

PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of rows: 1, number of positions: 8, product range: MSTB 2,5/..-STF, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard



Specifications
Item Value
Country of Origin Germany
Color Green
Nominal Current 12 A
Contact Surface Tin
Type Of Contact Female connector
Number Of Rows 1
Number Of Positions 8
Product Range MSTB 2
Pitch 5 mm
Connection Method Screw connection with tension sleeve
Screw Head Form L Slotted
Locking Clip without locking clip
Locking Screw Locking
Mounting Screw Flange
Type Of Packaging packed in cardboard
