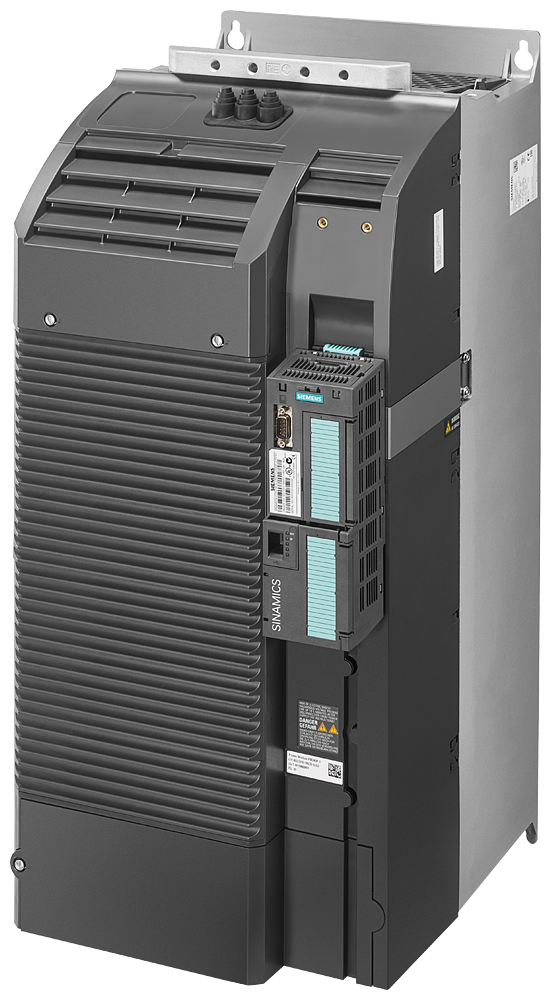

6SL33101PE337AA0 - SINAMICS PM330 IP20-FSGX-U-400V-200KW
by Siemens
Original price
$16,877.88
-
Original price
$16,877.88
Original price
$16,877.88
$16,877.88
-
$16,877.88
Current price
$16,877.88
SINAMICS G120P POWER MODULE PM330 WITHOUT FILTER WITHOUT BULT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 160KW FOR 150% 60S.100% 240S OUTPUT LIGHT OVERLOAD: 200KW FOR 110% 60S. 100% 240S AMBIENT TEMP 0 TO +40 DEG C 1447 X 452 X 328 (HXWXD). FSGX PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED with CU230P-2 FOR FIRMWARE-VERSION V4.6
| Item | Value |
|---|---|
| Depth | 327 mm |
| Width | 452 mm |
| Height | 1447 mm |
| Mains voltage | 380 V |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Max. output frequency | 100 Hz |
| Type of converter | U converter |
| Degree of protection (IP) | IP20 |
| Nominal output current I2N | 370 A |
| 4-quadrant operation possible | false |
| Integrated breaking resistance | false |
| Application in industrial area permitted | true |
| Relative symmetric net frequency tolerance | 5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Max. output at linear load at rated output voltage | 160 kW |
| Country of Origin | DE |
| Max. output at quadratic load at rated output voltage | 200 kW |
| Application in domestic- and commercial area permitted | false |
