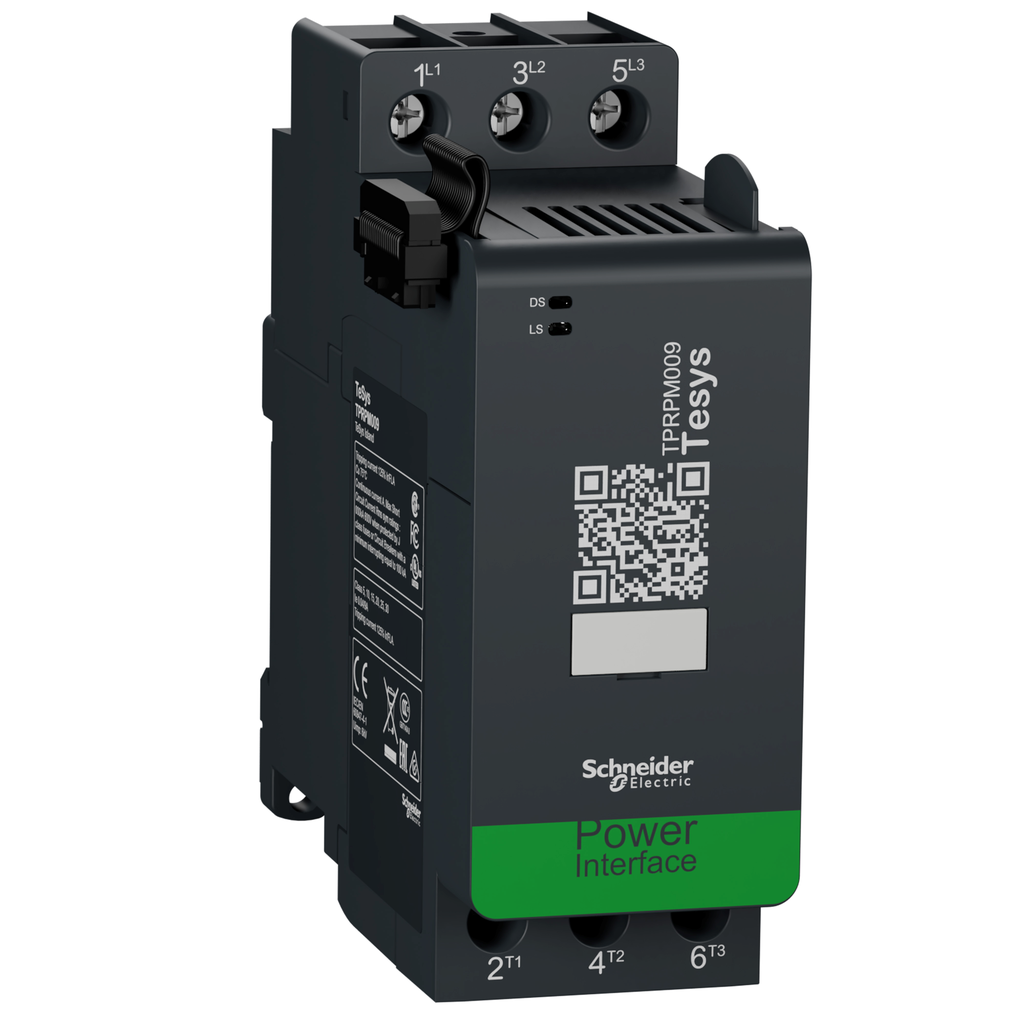

TPRPM009 - Power module, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp

TPRPM009 - Power module, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp

by Schneider Electric
$1,341.11 - $1,341.11
$1,341.11
$1,341.11 - $1,341.11
$1,341.11

TeSys island power module, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
