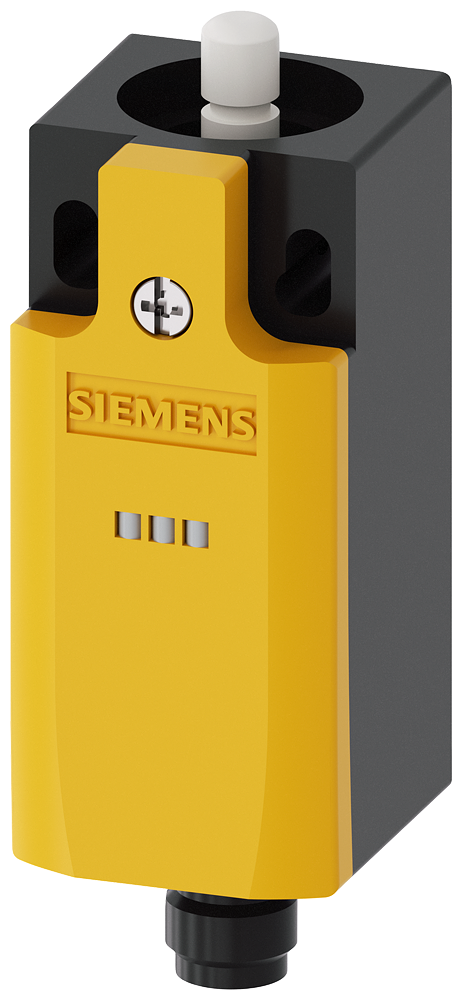

3SF1234-1KC05-1BA1 - LIMSW , ROUND PLUNGER, 2NC, SLOW, M12-4, ASI

3SF1234-1KC05-1BA1 - LIMSW , ROUND PLUNGER, 2NC, SLOW, M12-4, ASI

by Siemens
$150.99 - $150.99
$150.99
$150.99 - $150.99
$150.99

BASIC SWITCH W/O ACTUATOR HEAD MOLDED-PLASTIC ENCLOSURE, ACC. TO EN50047, ASISAFE INTEGRATED AS-I STATUS:1:F-IN1 , 2:F-IN2 3:AS-I/FAULT SLOW-ACTION CONTACTS 2NC, W/ M12 CONNECTOR 4-POLE CHANNEL 1 ON NC, CHANNEL 2 ON M12 SOCKET ON THE RIGHT



Specifications
Item Value
Width sensor 31 mm
Country of Origin DE
Forced opening true
Coating housing Other
Height of sensor 33 mm
Type of interface None
Length of sensor 89.7 mm
Output electronic false
Material housing Plastic
With status indication true
Type of control element None
Degree of protection (IP) IP65
Construction type housing Cuboid
Switching function latching false
Suitable for safety functions true
Number of safety auxiliary contacts 2
Switching function Slow-action switch
Explosion safety category for gas None
Explosion safety category for dust None
Number of contacts as change-over contact 0
Number of contacts as normally open contact 0
Ambient temperature during operating -25 °C
Number of contacts as normally closed contact 2
Type of interface for safety communication Other
Type of electric connection Plug-in connection M12
Alignment of the control element Roller cam straight
