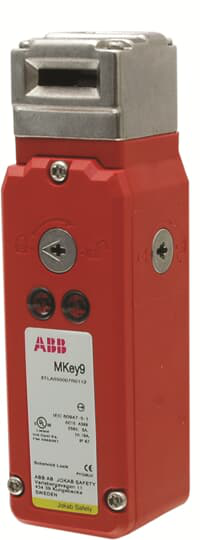

2TLA050007R0012 - MKey9 24VDC No Key Switch
by ABB
Original price
$463.51
-
Original price
$463.51
Original price
$463.51
$463.51
-
$463.51
Current price
$463.51
Safety interlock switch, rugged polyester housing and stainless steel head, 1xM20 Conduit entry, +24 VDC power to unlock. Delivered without key.
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | Mkey |
| Product Name | Switch |
| Function | Safety mechanical switch for interlocking with locking (Safety) |
| Special Functions | No key supplied; With auxiliary release |
| Item | Value |
|---|---|
| Product Net Depth / Length | 46 mm |
| Product Net Height | 160 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.603 kg |
| Item | Value |
|---|---|
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 123 |
| B10d Value | Operations at 100 mA Load 2.5 million |
| Item | Value |
|---|---|
| Number of Contacts NC | 2 |
| Number of Contacts NO | 2 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Item | Value |
|---|---|
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Plastic |
| Item | Value |
|---|---|
| eClass | V11.0 : 27270611 |
| ETIM 9 | EC002593 - Position switch with guard locking |
| Object Classification Code | B |
