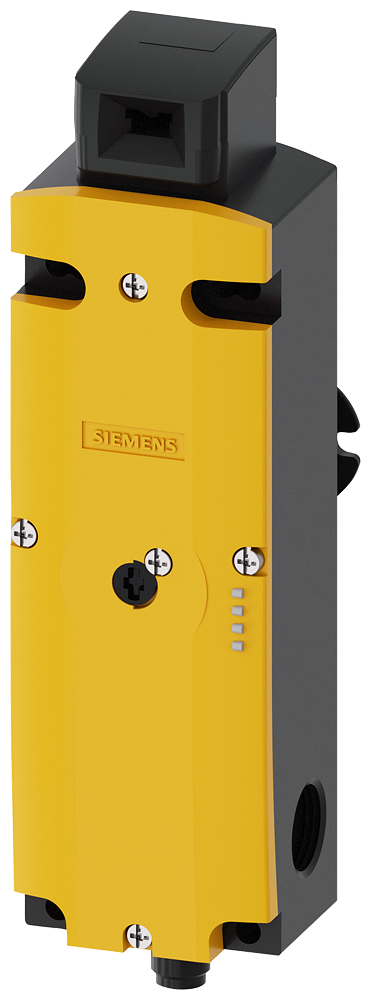

3SF1324-1SJ21-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI
by Siemens
Original price
$649.05
-
Original price
$649.05
Original price
$649.05
$649.05
-
$649.05
Current price
$649.05
Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Plastic enclosure, M12 connector ASIsafe integrated Channel 1=actuator 1 NC Channel 2=magnet 1 NC spring-locked Emergency release at the rear and Auxiliary release on front Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately
Item | Value |
---|---|
Country of Origin | DE |
Coating housing | Uncoated |
Material housing | Plastic |
With escape release | false |
With status indication | true |
Degree of protection (IP) | IP65 |
Type of interface | AS-Interface |
Suitable for safety functions | true |
Number of safety auxiliary contacts | 4 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Type of switching contact | Slow-action switch |
Construction type housing | Special construction |
Type of guard locking | Quiescent current principle |
Type of electric connection | Plug-in connection M12 |
Type of interface for safety communication | AS-Interface Safety at Work |
