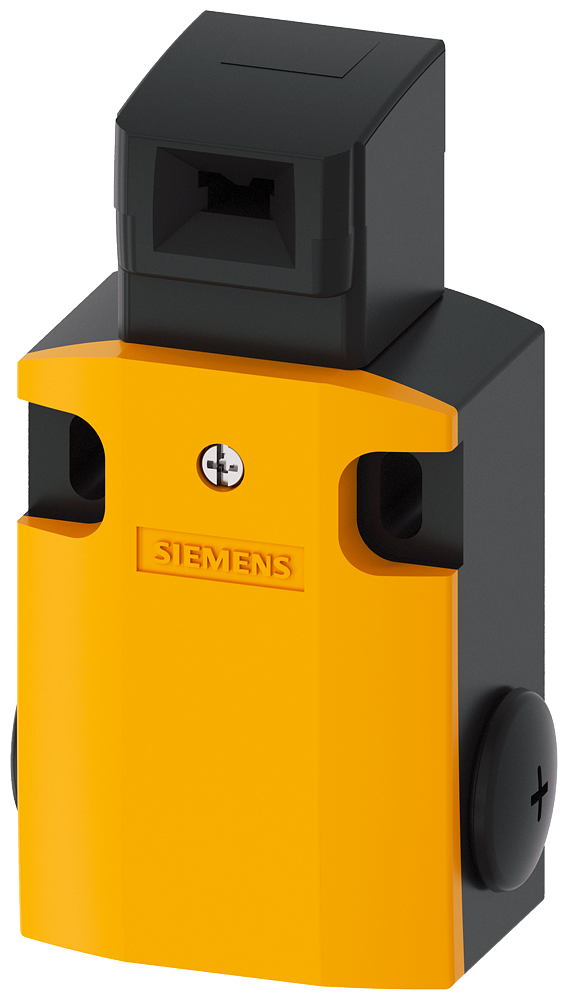

3SE5122-0QV10 - INTERLOCK SW, TOP&SIDE ENTRY, 1NO+2NC
by Siemens
Original price
$81.63
-
Original price
$81.63
Original price
$81.63
$81.63
-
$81.63
Current price
$81.63
Safety position switch with separate actuator metal enclosure, 56 mm device connection 3x (m20x 1.5) slow-action contacts 1 no/2 nc 5 directions of approaches the matching separate actuator 3SE5000-0av0. must be ordered separately
| Item | Value |
|---|---|
| Width sensor | 56 mm |
| Country of Origin | DE |
| Forced opening | true |
| Length of sensor | 110 mm |
| Material housing | Metal |
| Type of interface | None |
| Height of sensor | 37.8 mm |
| Coating housing | Lacquered |
| With status indication | false |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Suitable for safety functions | true |
| Degree of protection (IP) | IP66/IP67 |
| Number of safety auxiliary contacts | 2 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 24 V | 6 A |
| Rated operation current Ie at DC-13, 24 V | 3 A |
| Type of switching contact | Slow-action switch |
| Number of contacts as normally open contact | 1 |
| Ambient temperature during operating | -25 °C |
| Number of contacts as normally closed contact | 2 |
| Type of interface for safety communication | None |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Type of electric connection | Cable entry metrical |
