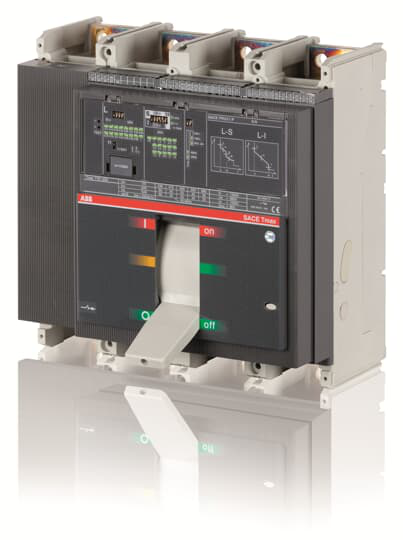

1SDA062874R1 - T7S 1250 PR231/P LS/I In=1250A 4p F F
by ABB
Original price
$3,307.14
-
Original price
$3,307.14
Original price
$3,307.14
$3,307.14
-
$3,307.14
Current price
$3,307.14
C.BREAKER TMAX T7S 1250 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1250
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b44488ca-9fb1-45ff-9d76-549644ffb614 Italy (IT) |
| Simplified SCIP | eae5cad5-3b59-4417-bf91-609f78dd7feb Czech Republic (CZ)6b0c39a0-0896-4998-9ef7-e8688a3c92cf Bulgaria (BG)93520fca-652d-4597-a048-9732841d4384 Netherlands (NL)31d72138-4ccd-42b6-9ed4-0e44ebc998b0 Estonia (EE)a75ecb1b-223e-402c-9825-238d7fd1d931 Greece (GR)8a3d1108-e38e-4915-9c38-e52c92fde18c Germany (DE)7a5fe5e6-5c06-4632-b1da-34ad3655ff99 Portugal (PT)0a69a5d4-e737-4a22-b83b-63737f5df608 Finland (FI)dc6c2c8e-fa7b-4d26-8765-5d40302e8b2a Netherlands (NL)fa2e19bc-ee9c-4811-a463-c4a4338be996 Germany (DE)bdc3effa-9a0a-4848-820d-db5eb63d6741 Croatia (HR)de8133ac-cabd-4527-a98e-b54563690bdc Poland (PL)db178175-27f1-4b84-9228-e207ea5eec5d Germany (DE)f7d75f1b-1f9a-418f-abd2-8c37623c337f France (FR)5a05e739-c0a6-4c94-9f67-aa815d056244 Norway (NO)0b25974d-1e43-4123-be99-9887276b3a4b Netherlands (NL)e18e5b67-42a8-44c2-b81e-848d35c7dfdc Spain (ES)700e67e2-387e-46a0-a323-ff24bdaeb1b1 Netherlands (NL)c149312c-3a67-4edd-bc44-4804b5a2bd5a Sweden (SE)2afedc33-2f8a-44da-9728-7b8800ffb296 France (FR)c9c54ef2-bc3f-43b0-9bd1-e43b99b83295 Sweden (SE)0ed35a74-cbd6-4816-a57e-45cc4c7ab437 Poland (PL)7d50e1a5-3d70-401f-9289-d78fa7bc127a Germany (DE)4f074b7b-4b49-4b66-b1ff-c346955c1543 Poland (PL)090c7f6d-e5b1-4e39-870a-e32d5f9ca203 Netherlands (NL)dd305b1a-4ce2-49cb-9a33-0ba469f0f5e4 Denmark (DK) |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 17.67 kg |
| Item | Value |
|---|---|
| Electrical Durability | 2000 cycle60 cycles per hour |
| Mechanical Durability | 10000 cycle60 cycles per hour |
| Number of Poles | 4 |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Suitable For | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
