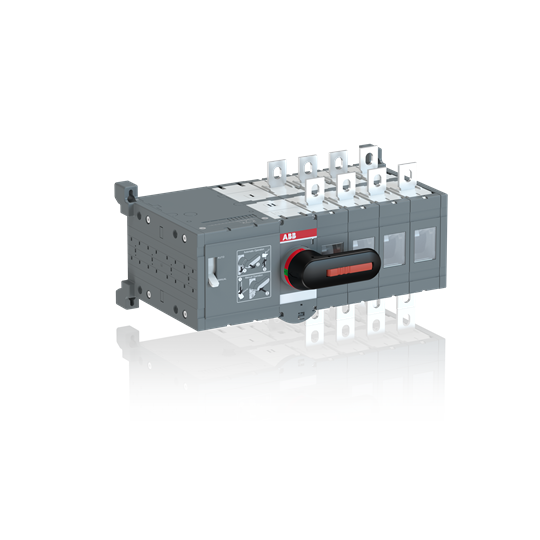

1SCA022847R2950 - OTM400E4CM24D MOTORIZED C/O SWITCH

1SCA022847R2950 - OTM400E4CM24D MOTORIZED C/O SWITCH

by ABB
$2,066.57 - $2,066.57
$2,066.57
$2,066.57 - $2,066.57
$2,066.57

OTM400E4CM24D MOTORIZED C/O SWITCH, Direct mounted handle, Open transition



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Environmental Information 1SCC303036D0202
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 367 mm
Product Net Height 185 mm
Product Net Depth / Length 235 mm
Product Net Weight 9.4 kg20.7 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-31B (Ie) (380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie) (380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe) (380 ... 415 V) 220 kW(500 V) 280 kW(690 V) 400 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 400 A
Conventional Thermal Current (Ithe) Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 1000 V
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 15 kiloampere rms
Motor Operational Voltage 24 V DC
Power Loss 10 W
Pollution Degree 3
Handle Color Black
Handle Type Direct mounted handle
Fourth Pole Position Right Side
Fourth Pole Type Switched - Simultaneous Function
Switches Operating Mechanism Mechanism at the End of the Switch
Distance Between Phases Standard
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Operating Mode Front operated
Mounting Type Base mounting
Number of Poles 4
Degree of Protection Front IP20
Transition Type Open

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information 1SCC303036D0202

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC000216 - Switch disconnector (low voltage)
eClass V11.1 : 27371403
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3641759
