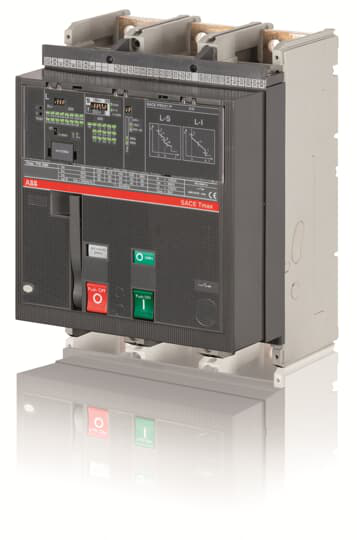

1SDA062754R1 - T7S 1000 PR231/P LS/I In=1000A 3p F F M
by ABB
Original price
$2,444.31
-
Original price
$2,444.31
Original price
$2,444.31
$2,444.31
-
$2,444.31
Current price
$2,444.31
C.BREAKER TMAX T7S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000
| Item | Value |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b8867a07-64db-4e2f-90ea-5a115bf8947f Italy (IT) |
| Simplified SCIP | 5d3e86fd-49cd-4297-a74a-9542f0e34844 Spain (ES)9983727a-0831-4b4e-8bfc-501b83aaf726 Netherlands (NL)6ef0dad3-385f-4844-95c2-688cbcef9c62 Norway (NO)be34d825-3209-4648-a5a9-1a58a1c3ab03 Poland (PL)36cd487b-05f1-479f-878d-4e55f0de2b37 Finland (FI)87f1eb73-0514-4e65-8805-979b0e53c58e Germany (DE)656ebd45-33e6-424d-9519-09bec7fb067d Denmark (DK)338addea-0a19-4bdf-9f23-5e9eac77bacd Germany (DE)ff47c574-c8a3-4004-ba1d-2f931d6bd909 Czech Republic (CZ)81de8319-c957-4985-9bd9-00b9237e0a09 Poland (PL)f0bbec5e-3f6d-40e5-9811-c40bd78f2e88 Netherlands (NL)768dc1b0-cc12-4340-a50d-94d6a14af506 Netherlands (NL)06337441-b378-4cf0-b027-808fa8a5c560 Estonia (EE)618a1a0f-7453-4c3a-9815-f35b8ec85f9f Greece (GR)e3ecb0c8-d2cf-4458-a163-c3dd04a6b2b5 Portugal (PT)9ddc3bd9-1c3e-445c-a9af-8e1fce9ec0e0 Bulgaria (BG)f94eebb6-9e2c-4f24-845a-e825b88232b4 Sweden (SE)efcf6bc3-6bea-47a0-8811-e848c2f8e817 Poland (PL)bcd4fd7f-3eb2-4688-be59-f3f6600eef60 France (FR)0b60a9e6-532a-4db5-b734-e18154e6a0ff Sweden (SE)3598acdb-2d14-4015-8f04-31c4af9d5112 Netherlands (NL)b2bab38f-fdc9-4e01-a4ae-19f94a56c357 Croatia (HR)24cbfc71-2738-4e63-88c1-b0b281b23869 Germany (DE)d27e6811-db0a-43d1-8359-e86a6d3de49e Germany (DE)50d18547-57f2-4869-b78b-66db1f6b0031 France (FR)cc46646c-c245-44d2-9387-22b20e9f1d93 Netherlands (NL) |
| Item | Value |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14.725 kg |
| Item | Value |
|---|---|
| Electrical Durability | 2000 cycle60 cycles per hour |
| Mechanical Durability | 10000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | PR231/P-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T7 |
| Suitable For | T7M |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
| Version | F |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
