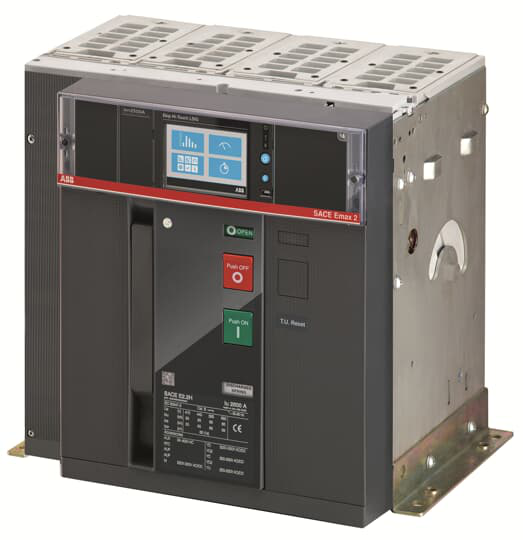

1SDA071614R1 - E2.2B 1600 Ekip Touch LI 4p F HR
by ABB
Original price
$5,763.17
-
Original price
$5,763.17
Original price
$5,763.17
$5,763.17
-
$5,763.17
Current price
$5,763.17
C.BREAKER SACE EMAX2 E2.2B 1600 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/TOUCH-LI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2361 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | b76917b2-3118-4ae8-ab6c-c9b187febfa6 Italy (IT) |
Simplified SCIP | c2b30478-6474-46dd-b4b6-a00d4ec5a3b9 Poland (PL)f2774f31-c183-46bb-8542-f73eb7ac6da4 Hungary (HU)ae934500-898a-46a2-a034-8846a9ab861b Spain (ES)14baefdb-66da-4641-8039-562cc11d94ff Belgium (BE)f10db918-0aff-4b52-81ff-fdbc162112b7 France (FR)7dd93e35-c0c9-4503-aea3-d680aa23ce58 Finland (FI)65d39d35-3aa0-4c80-89f5-36a25472bb86 Netherlands (NL)b9971b0d-963d-450b-9253-71c836049e9d Poland (PL)fc96341e-7731-492c-88a2-26015e451d4f Norway (NO)fb4d8f21-d2eb-4fbb-a8c6-282d1f685311 Hungary (HU)f6db9496-b6e3-45e9-a662-c8d5d348db69 Sweden (SE)4ed7775f-f4c6-4574-af96-c07f319b0dec Greece (GR)bf0ff894-6577-4e6c-be69-23309283ad58 Estonia (EE)deb315dd-ded4-48bc-8229-8c8b3ff97349 Germany (DE)a9385cf2-5650-4140-a4af-dea15d786d26 Bulgaria (BG)21db4c19-032e-4de6-81c7-0fcda57bd3f6 Belgium (BE)80b2a29b-6108-4942-b26f-a9d2ec646c8d Germany (DE)334179a4-1c48-4df4-8233-97808e3a3add Denmark (DK)3ef1fcc9-d97f-49e3-8fb2-08125f50be1f Germany (DE)5790bf8f-cd8d-4738-b7a3-2bcdb91f84b8 Germany (DE)5d547f13-6757-413b-a56e-6061ca23dfe1 France (FR)c389bb78-5d26-4788-b332-d6a9d27a65ee Croatia (HR)376bbc87-4e71-4d70-b0f6-e3a486337723 Poland (PL)ac8bdc07-7735-4b63-946c-9eb901df7885 Sweden (SE)a7eb9686-583c-4d70-9dc9-7103942efb13 Portugal (PT)53addd3d-9b41-4260-a04b-435aee12e385 Czech Republic (CZ) |
Item | Value |
---|---|
Order Code US and Canada | ZBBSEJBD000A000000XX |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 366 mm |
Product Net Height | 371 mm |
Product Net Depth / Length | 270 mm |
Product Net Weight | 53 kg |
Item | Value |
---|---|
Current Type | AC |
Electrical Durability | Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour |
Mechanical Durability | 25000 cycle60 cycles per hour |
Neutral Pole Current ([%Iu]) | 100 % |
Number of Poles | 4 |
Power Loss | 136 W |
Product Main Type | SACE Emax 2 |
Product Name | Air Circuit Breaker |
Product Type | Air Circuit Breaker |
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
Rated Current (In) | 1600 A |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
Rated Insulation Voltage (Ui) | AC 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kAfor 3 s 42 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA |
Rated Uninterrupted Current (Iu) | 1600 A |
Recommended Screw Driver | Main Circuit M12 |
Release | Ekip Touch LI |
Release Type | EL |
Short-Circuit Performance Level | B |
Standards | IEC |
Sub-type | E2.2 |
Terminal Connection Type | Rear flat Horizontal |
Terminal Type | Bolt |
Tightening Torque | 70 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001252R0123 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
