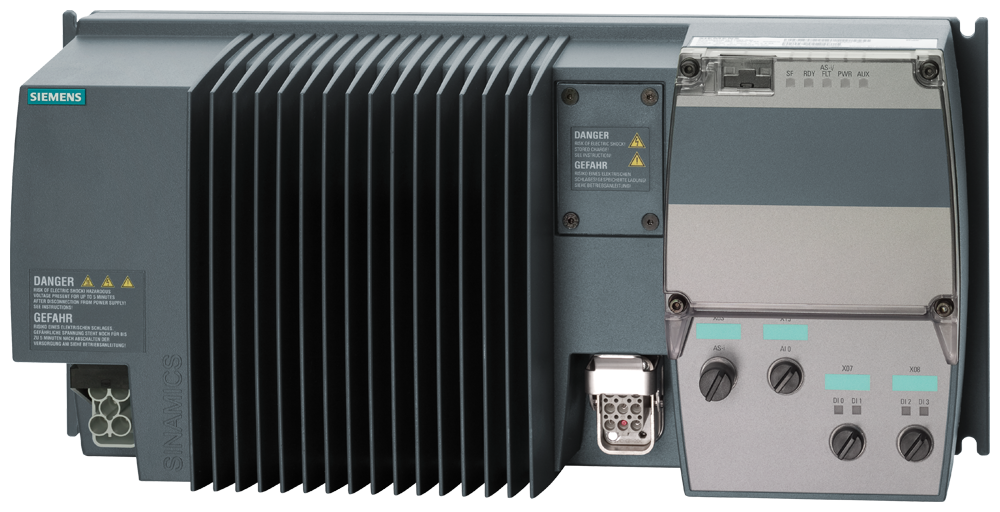

6SL35110PE240AM0 - SINAMICS G110D, 500V, 4.0KW, 3AC, 500V, FSB
by Siemens
Original price
$1,824.74
-
Original price
$1,824.74
Original price
$1,824.74
$1,824.74
-
$1,824.74
Current price
$1,824.74
SINAMICS G110D AC-DRIVE, W/O REPAIR SWITCH WITH BUILT IN CL. A FILTER WITH BULT IN BRAKING CHOPPER WITH AS-INTERFACE BUS INTERFACE 3AC380-500V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 4,0KW FOR 200% 3S,150% 60S,100% 300S AMBIENT TEMP -10 TO +40 DEG C 210 X 450 X 165 (HXWXD), FSB PROTECTION IP65 WITHOUT OPERATOR PANEL
| Item | Value |
|---|---|
| Depth | 165 mm |
| Width | 445 mm |
| Height | 210 mm |
| Mains voltage | 380 V |
| With PC connection | true |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Country of Origin | GB |
| Number of digital inputs | 4 |
| Max. output frequency | 650 Hz |
| Number of analogue inputs | 1 |
| With optical interface | true |
| Number of HW-interfaces USB | 1 |
| Type of converter | U converter |
| Degree of protection (IP) | IP65 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Nominal output current I2N | 10.2 A |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Supporting protocol for ASI | true |
| Supporting protocol for CAN | false |
| Supporting protocol for KNX | false |
| Supporting protocol for LON | false |
| 4-quadrant operation possible | true |
| Number of HW-interfaces parallel | 0 |
| Integrated breaking resistance | true |
| Number of HW-interfaces serial TTY | 0 |
| Supporting protocol for MODBUS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for PROFINET CBA | false |
| Application in industrial area permitted | true |
| Number of HW-interfaces industrial Ethernet | 0 |
| Relative symmetric net voltage tolerance | -10 % |
| Supporting protocol for INTERBUS-Safety | false |
| Relative symmetric net frequency tolerance | -5 % |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Foundation Fieldbus | false |
| Max. output at linear load at rated output voltage | 4 kW |
| Supporting protocol for AS-Interface Safety at Work | false |
| Application in domestic- and commercial area permitted | false |
