140G-I2C3-D15-SJ-AJ - 140G-I2C3-D15-SJ-AJ - 140G Molded Case Circuit Breakers & Molded Case Switch
Original price
$1,329.63
-
Original price
$1,329.63
Original price
$1,329.63
$1,329.63
-
$1,329.63
Current price
$1,329.63

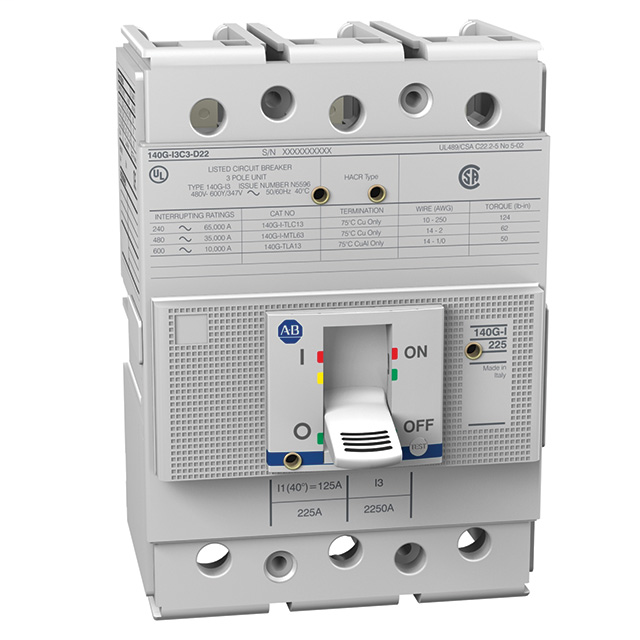

140G - Molded Case Circuit Breaker, I frame, 25 kA, T/M - Thermal Magnetic, 3 Poles, Rated Current 150 A, Shunt Trip 24...30V AC/DC, 1 NO/NC AUX + Alarm, 24V
Item | Value |
---|---|
Bulletin Number | 140G - Molded Case Circuit Breaker |
Frame/Rating | I Frame (225 A) |
Interrupting Rating, 50/60 Hz, 240V (kA) | 50 |
Interrupting Rating, 50/60 Hz, 480V (kA) | 25 |
Interrupting Rating, 50/60 Hz, 600V (kA) | 10 |
Breaking Capacity, 50/60 Hz, 220V (kA) | 50 |
Breaking Capacity, 50/60 Hz, 415V (kA) | 36 |
Breaking Capacity, 50/60 Hz, 440V (kA) | 25 |
Item | Value |
---|---|
Device Type | 140G - Molded Case Circuit Breaker |
Number of Poles | 3 Poles |
Frame Size | I frame |
Rated Current(A) | 150 A |
Protection | T/M - Thermal Magnetic |
Item | Value |
---|---|
Assembly | Factory Assembled |
Item | Value |
---|---|
Shunt Trip and Undervoltage Release Units | Shunt Trip 24...30V AC/DC |
Auxiliary and Alarm Contacts | 1 NO/NC AUX + Alarm, 24V |
2-Dimensional Drawing (PDF)
3-Dimensional STEP model (STP)
Link to Literature Library for Tech Data
2-Dimensional Drawing (DWG/DXF)
Link to Literature Library for Installation Instructions
Link to Literature Library for Selectivity Guide
