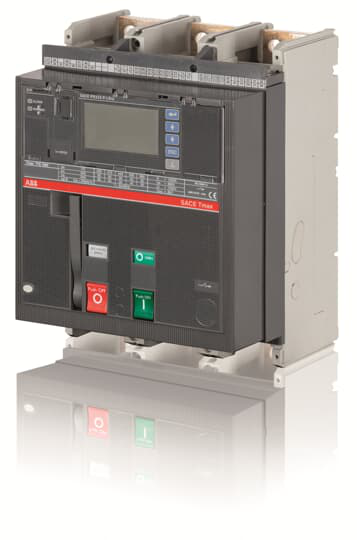

1SDA062885R1 - T7S 1250 PR332/P LI In=1250A 3p F F M

1SDA062885R1 - T7S 1250 PR332/P LI In=1250A 3p F F M

by ABB
$3,536.99 - $3,536.99
$3,536.99
$3,536.99 - $3,536.99
$3,536.99

C.BREAKER TMAX T7S 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR332/P-LI R 1250



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Toxic Substances Control Act - TSCA 9AKK108467A8326

Environmental
Item Value
Environmental Information 9AKK10103A1059 9AKK108467A6707
REACH Declaration 9AKK108466A1425
RoHS Information 9AKK108466A1424
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Ordering
Item Value
Order Code US and Canada T7MSFB3AP000000XX
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Dimensions
Item Value
Product Net Width 210 mm
Product Net Height 268 mm
Product Net Depth / Length 178 mm
Product Net Weight 11 kg

Additional Information
Item Value
Electrical Durability 2000 cycle60 cycles per hour
Mechanical Durability 10000 cycle60 cycles per hour
Number of Poles 3
Power Loss at Rated Operating Conditions per Pole 47 W
Product Main Type SACE Tmax T
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Rated Current (In) 1250 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
Rated Uninterrupted Current (Iu) 1250 A
Release PR332/P LI
Release Type EL
Short-Circuit Performance Level S
Standards IEC
Sub-type T7
Suitable For T7M
Suitable for Product Class Moulded Case Circuit Breakers
Terminal Connection Type Fixed Circuit-BreakersFront
Version F

Classifications
Item Value
ETIM 9 EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code Q
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409
