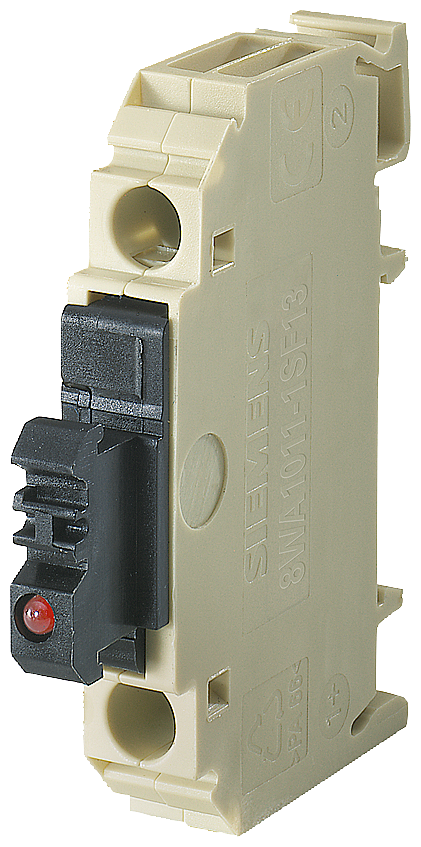

8WA1011-1SF30 - BJ83D5LOCK, SCREW, FUSE, 1.5
by Siemens
Original price
$7.21
-
Original price
$7.21
Original price
$7.21
$7.21
-
$7.21
Current price
$7.21
TERM BLOCK,SCREW,FUSE,1.5 1/4'X1' AND 1/4'X1 1/4' FOR INCH FUSE LINK SCREW CONNECTION FUSE TERMINAL
Item | Value |
---|---|
Height | 42 mm |
Country of Origin | DE |
Colour | Other |
Number of levels | 1 |
Rated voltage | 250 V |
Rated current In | 6.3 A |
Type of fuse holder | Other |
Type of fuse insert | Other |
Closing plate required | false |
Material insulation body | Thermoplastic |
Voltage type for defect indication | AC/DC |
Mounting method | DIN rail (top hat rail) 35 mm |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Type of indication element for defect indication | None |
Connectable conductor cross section solid-core | 1 mm² |
Connectable conductor cross section multi-wired | 1.5 mm² |
Inflammability class of insulation material acc. with UL94 | Other |
Connectable conductor cross section fine-strand with cable end sleeve | 0.75 mm² |
