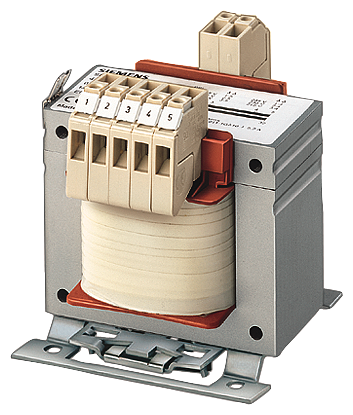

4AM65428BD400FA0 - TRANSF, 1-PH, 2.5KVA, PRI MULTI V, SEC 2X115

4AM65428BD400FA0 - TRANSF, 1-PH, 2.5KVA, PRI MULTI V, SEC 2X115

by Siemens
$2,034.81 - $2,034.81
$2,034.81
$2,034.81 - $2,034.81
$2,034.81

TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):2,5 /15,6; UPRI(V):575-550-525-500-480- 460-440 -415-400-380-230-220-200-190; USEC(V):230-2X115; ISEC(A):10,9-21,8; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW/TAB CONNECTI ON; INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED<(><<)> >CONTROL CIRCUIT TRANSFORMER<(><<)> >ISOLATION TRANSFORMER<(><<)>



Specifications
Item Value
Depth 178 millimetre
Width 194 millimetre
Height 180 millimetre
Protection type IP IP00
min. primary voltage7 440 volt
max. primary voltage 1 575 volt
max. primary voltage 2 550 volt
max. primary voltage 3 525 volt
max. primary voltage 4 500 volt
max. primary voltage 5 480 volt
max. primary voltage 6 460 volt
max. primary voltage 7 440 volt
max. primary voltage 8 415 volt
max. primary voltage 9 400 volt
min. primary voltage 1 575 volt
min. primary voltage 2 550 volt
min. primary voltage 3 525 volt
min. primary voltage 4 500 volt
min. primary voltage 5 480 volt
min. primary voltage 6 460 volt
min. primary voltage 8 415 volt
min. primary voltage 9 400 volt
max. primary voltage 10 380 volt
min. primary voltage 10 380 volt
max. secondary voltage 1 230 volt
max. secondary voltage 2 115 volt
min. secondary voltage 1 230 volt
min. secondary voltage 2 115 volt
Rated performance 2500 volt ampere
designed as safety transformer false
suitable for series installation false
designed as isolating transformer false
designed as compensator transformer false
suitable for circuit-board mounting false
Insulation Material Class acc. to IEC 85 B
relative short-circuit voltage 1.84 percent
Country of Origin CZ
