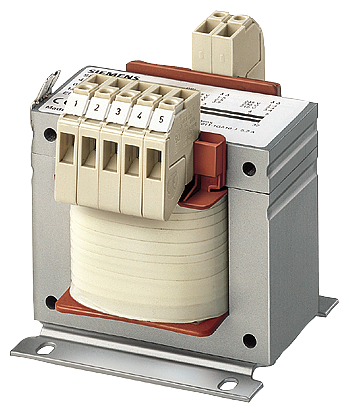

4AM34428DB400FA0 - XFMR, 1-PHASE, UPRI 550-208V, USEC 2X24V
by Siemens
Original price
$293.15
-
Original price
$293.15
Original price
$293.15
$293.15
-
$293.15
Current price
$293.15
TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):0,1 /0,31; UPRI(V):550-525-500-480-460- 440-415-400-380-230-208; USEC(V):48-(2X24); ISEC(A):2,08-4,2; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW/TAB CONNECTION; INSTALLATION:SCREWS/MOUNTING RAILS; EN 61558-2-2, -2-6 >UL/CSA-RECOGNIZED< >CONTROL CIRCUIT TRANSFORMER< >SAFETY ISOLATING TRANSFORMER<
| Item | Value |
|---|---|
| Width | 86 millimetre |
| Depth | 102 millimetre |
| Height | 98 millimetre |
| Protection type IP | IP00 |
| min. primary voltage7 | 415 volt |
| max. primary voltage 1 | 550 volt |
| max. primary voltage 2 | 525 volt |
| max. primary voltage 3 | 500 volt |
| max. primary voltage 4 | 480 volt |
| max. primary voltage 5 | 460 volt |
| max. primary voltage 6 | 440 volt |
| max. primary voltage 7 | 415 volt |
| max. primary voltage 8 | 400 volt |
| max. primary voltage 9 | 380 volt |
| min. primary voltage 1 | 550 volt |
| min. primary voltage 2 | 525 volt |
| min. primary voltage 3 | 500 volt |
| min. primary voltage 4 | 480 volt |
| min. primary voltage 5 | 460 volt |
| min. primary voltage 6 | 440 volt |
| min. primary voltage 8 | 400 volt |
| min. primary voltage 9 | 380 volt |
| max. primary voltage 10 | 230 volt |
| min. primary voltage 10 | 230 volt |
| Rated performance | 100 volt ampere |
| designed as safety transformer | false |
| suitable for series installation | false |
| designed as isolating transformer | false |
| relative short-circuit voltage | 10 percent |
| designed as compensator transformer | false |
| suitable for circuit-board mounting | false |
| Insulation Material Class acc. to IEC 85 | B |
| Country of Origin | CZ |
