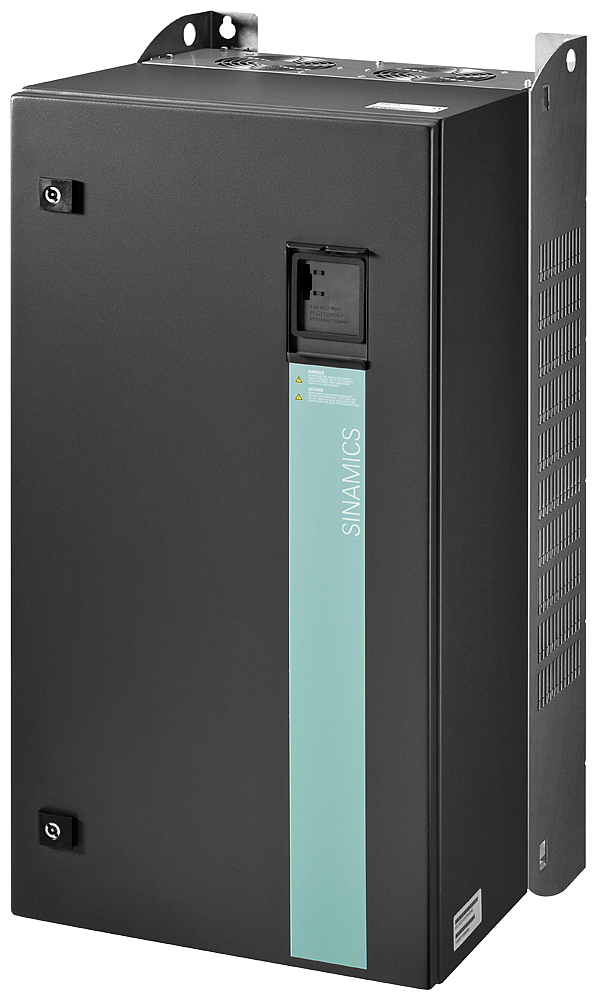

6SL32230DE375AA0 - SINAMICS PM230-IP55-FSF-A-400V 75KW
by Siemens
Original price
$10,745.04
-
Original price
$10,745.04
Original price
$10,745.04
$10,745.04
-
$10,745.04
Current price
$10,745.04
SINAMICS G120P POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP55 / UL TYPE12 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 75KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 915 X 410 X 416 (HXBXT), FSF WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU230P-2 FIRMWARE-VERSION V4.3.2
| Item | Value |
|---|---|
| Country of Origin | DE |
| Depth | 416 mm |
| Width | 410 mm |
| Height | 915 mm |
| Mains voltage | 380 V |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Max. output frequency | 550 Hz |
| Type of converter | U converter |
| Degree of protection (IP) | IP55 |
| Nominal output current I2N | 145 A |
| 4-quadrant operation possible | false |
| Integrated breaking resistance | false |
| Application in industrial area permitted | true |
| Relative symmetric net frequency tolerance | 5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Max. output at linear load at rated output voltage | 55 kW |
| Max. output at quadratic load at rated output voltage | 75 kW |
| Application in domestic- and commercial area permitted | false |
