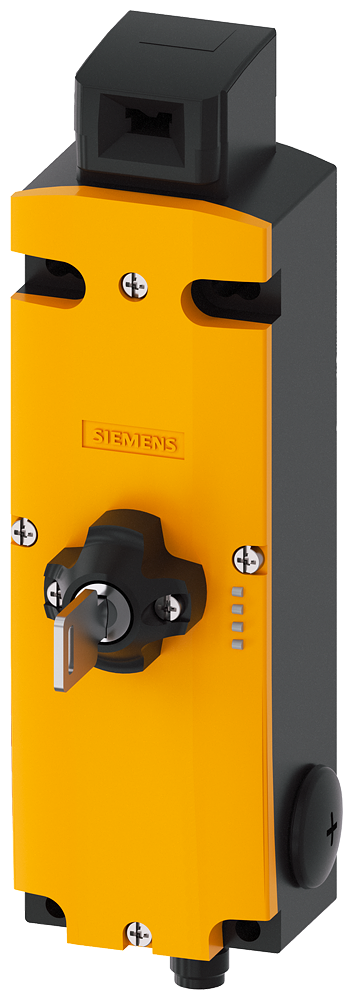

3SF1314-1SE11-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI
by Siemens
Original price
$592.34
-
Original price
$592.34
Original price
$592.34
$592.34
-
$592.34
Current price
$592.34
Safety position switch with tumbler Locking force 2600 N 5 directions of approaches Metal enclosure, M12 connector ASIsafe integrated Channel 1=actuator 1 NC Channel 2=magnet 1 NC spring-locked Auxiliary release lock on front Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately
Item | Value |
---|---|
Country of Origin | DE |
Width sensor | 54 mm |
Length of sensor | 185 mm |
Material housing | Metal |
Height of sensor | 43.5 mm |
Coating housing | Lacquered |
Guard locking force | 2600 N |
With escape release | false |
With status indication | true |
Type of interface | AS-Interface |
Suitable for safety functions | true |
Degree of protection (IP) | IP66/IP67 |
Number of safety auxiliary contacts | 4 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Type of switching contact | Slow-action switch |
Construction type housing | Special construction |
Ambient temperature during operating | -25 °C |
Type of guard locking | Quiescent current principle |
Type of electric connection | Plug-in connection M12 |
Rated control supply voltage Us magnet drive at DC | 24 V |
Type of interface for safety communication | AS-Interface Safety at Work |
