3SE5234-1RV40-1AF3 - INTERLOCK SW, TOP&SIDE ENTRY, 1NO+1NC, 2LED
by Siemens
Original price
$84.96
-
Original price
$84.96
Original price
$84.96
$84.96
-
$84.96
Current price
$84.96

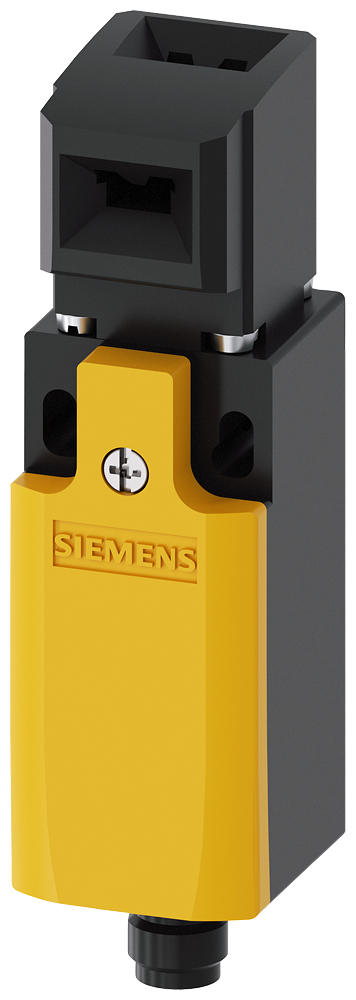

Safety position switch with separate actuator Plastic enclosure, 31 mm according to EN 50047 1 NO/1 NC slow-action contacts with M12 connector, 5-pole, fixed and 2 LEDs yellow/green 24 V DC, 5 directions of approaches Pin assignment: Pin1=21, Pin2=22 Pin3=14 and LED green, Pin4=13 and LED yellow, Pin5=ground LED The matching separate actuator 3SE5000-0AV0. must be ordered separately
| Item | Value |
|---|---|
| Country of Origin | DE |
| Width sensor | 31 mm |
| Forced opening | true |
| Coating housing | Other |
| Height of sensor | 33 mm |
| Length of sensor | 104 mm |
| Type of interface | None |
| Material housing | Plastic |
| With status indication | true |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Type of electric connection | Other |
| Suitable for safety functions | true |
| Number of safety auxiliary contacts | 1 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at DC-13, 24 V | 3 A |
| Type of switching contact | Slow-action switch |
| Number of contacts as normally open contact | 1 |
| Ambient temperature during operating | -25 °C |
| Number of contacts as normally closed contact | 1 |
| Type of interface for safety communication | None |
