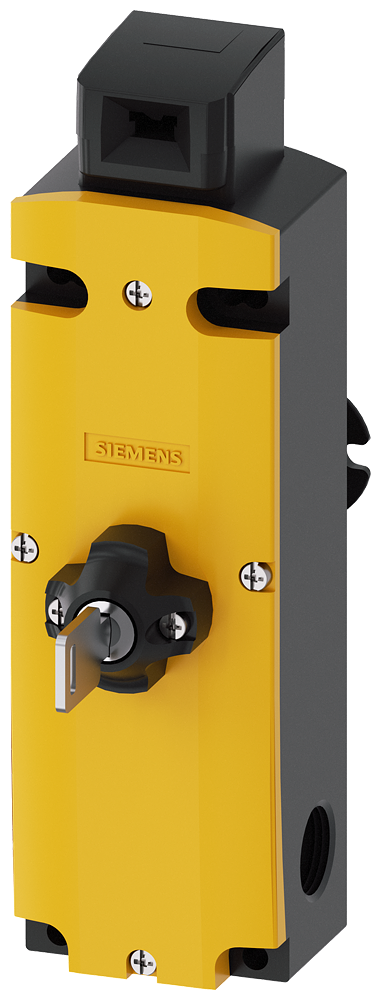

3SE5322-0SH21 - POS.SWITCH W. TUMBLER W.ESCAPE REL.+LOCK

3SE5322-0SH21 - POS.SWITCH W. TUMBLER W.ESCAPE REL.+LOCK

by Siemens
$360.98 - $360.98
$360.98
$360.98 - $360.98
$360.98

SAFETY POSITION SWITCHES WITH SOLENOID INTERLOCKING LOCK. FORCE 1300N,5 APPR. DIR. METAL HOUSING,3X(M20X1.5) SPRING-LOCKED, ESCAPE RELEASE FROM REAR AND AUX. RELEASE WITH LOCK ON FRONT, MAGNET VOLTAGE 24V DC, MONITOR. OF ACTUATOR 2NC/1NO, MONITOR. OF MAGNET 2NC/1NO



Specifications
Item Value
Country of Origin DE
Width sensor 54 mm
Length of sensor 185 mm
Type of interface None
Height of sensor 43.5 mm
Coating housing Uncoated
Material housing Plastic
With escape release true
Guard locking force 1300 N
With status indication false
Degree of protection (IP) IP65
Suitable for safety functions true
Number of safety auxiliary contacts 4
Explosion safety category for gas None
Explosion safety category for dust None
Number of contacts as change-over contact 0
Rated operation current Ie at AC-15, 24 V 6 A
Rated operation current Ie at DC-13, 24 V 3 A
Type of switching contact Slow-action switch
Construction type housing Special construction
Ambient temperature during operating -25 °C
Type of interface for safety communication None
Rated operation current Ie at DC-13, 125 V 0.55 A
Type of electric connection Cable entry metrical
Type of guard locking Quiescent current principle
Rated control supply voltage Us magnet drive at DC 24 V
