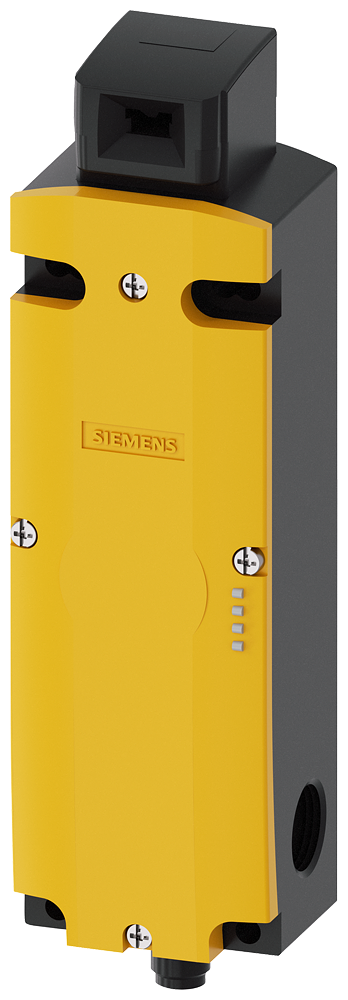

3SF1324-1SB21-1BA1 - INTERLOCK SW, TOP&SIDE ENTRY, 2NC, LED, ASI
by Siemens
Original price
$455.96
-
Original price
$455.96
Original price
$455.96
$455.96
-
$455.96
Current price
$455.96
Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Plastic enclosure, M12 connector ASIsafe integrated Channel 1=actuator 1 NC Channel 2=magnet 1 NC Solenoid-locked Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately
| Item | Value |
|---|---|
| Width sensor | 54 mm |
| Country of Origin | DE |
| Length of sensor | 185 mm |
| Height of sensor | 43.5 mm |
| Coating housing | Uncoated |
| Material housing | Plastic |
| Guard locking force | 1300 N |
| With escape release | false |
| With status indication | true |
| Type of interface | AS-Interface |
| Suitable for safety functions | true |
| Degree of protection (IP) | IP66/IP67 |
| Number of safety auxiliary contacts | 4 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Type of switching contact | Slow-action switch |
| Construction type housing | Special construction |
| Ambient temperature during operating | -25 °C |
| Type of guard locking | Operating current principle |
| Type of electric connection | Plug-in connection M12 |
| Rated control supply voltage Us magnet drive at DC | 24 V |
| Type of interface for safety communication | AS-Interface Safety at Work |
