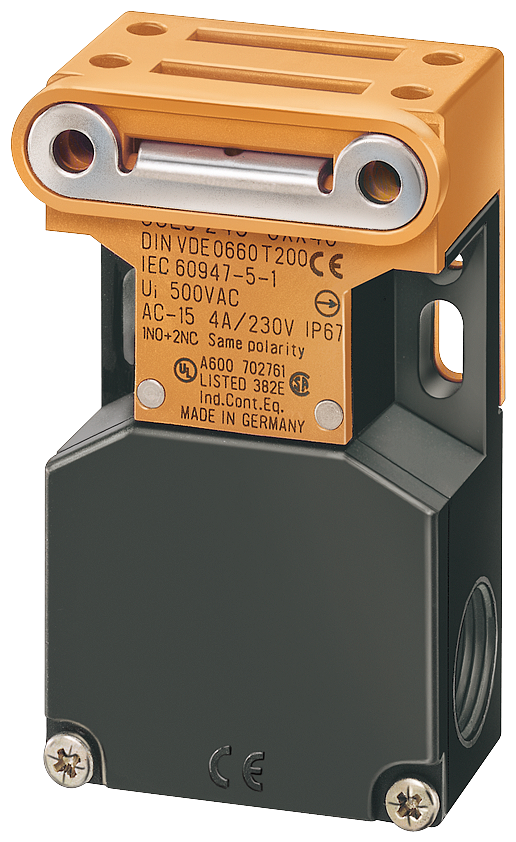

3SE2243-0XX40 - INTERLOCK SW, TOP & SIDE ENTRY, 1NO + 2NC

3SE2243-0XX40 - INTERLOCK SW, TOP & SIDE ENTRY, 1NO + 2NC

by Siemens
$43.32 - $43.32
$43.32
$43.32 - $43.32
$43.32

Interlock Switch w/o Coded Key Top, Front <(>&<)> Back Side Entry Molded Plastic 1NO + 2NC,Slow-action M20 x 1.5 Threaded Opening Width = 52mm UL File E44653 in Vol.2 Sec.56



Specifications
Item Value
Coating housing Other
Country of Origin DE
Type of interface None
Material housing Plastic
With status indication false
Degree of protection (IP) IP67
Construction type housing Other
Suitable for safety functions true
Number of safety auxiliary contacts 1
Explosion safety category for gas None
Explosion safety category for dust None
Number of contacts as change-over contact 0
Type of switching contact Slow-action switch
Number of contacts as normally open contact 1
Number of contacts as normally closed contact 2
Type of interface for safety communication None
Type of electric connection Cable entry metrical

application/pdf
Spec Sheet
