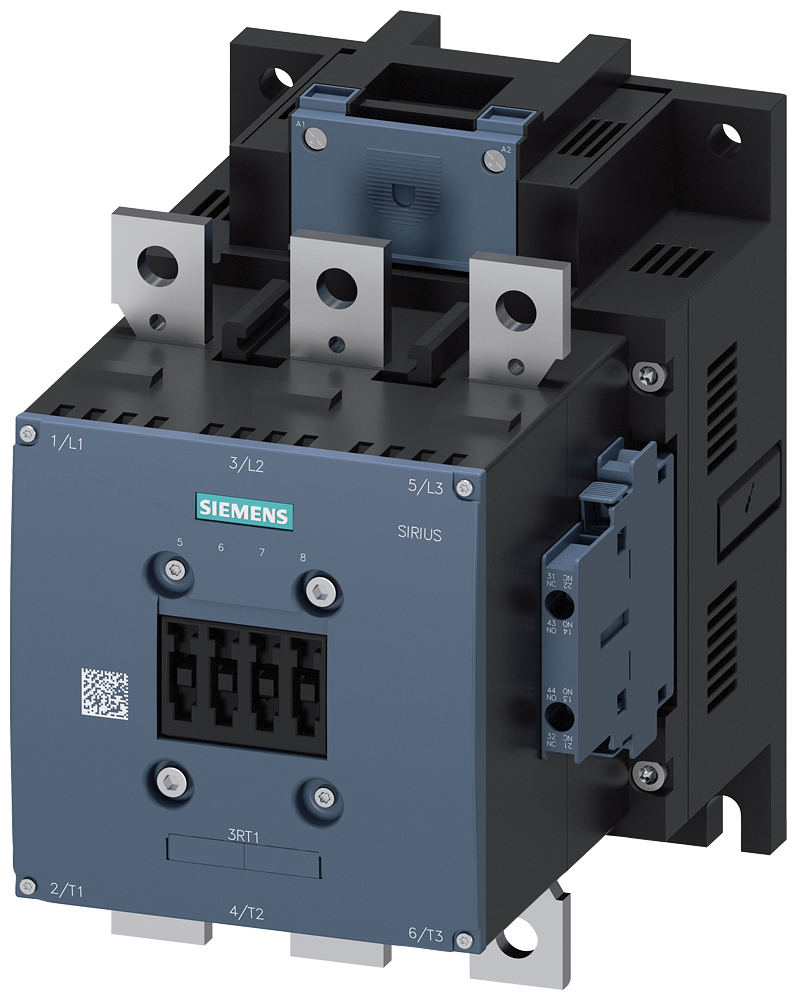

3RT1065-6AD36 - CONTACTOR S10 265A 42-48VUC 3P BAR

3RT1065-6AD36 - CONTACTOR S10 265A 42-48VUC 3P BAR

by Siemens
$968.56 - $968.56
$968.56
$968.56 - $968.56
$968.56

DRIVE: CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NC AC/DC OPERATION 42-48V UC CONTACTOR, 132KW/400V/AC-3



Specifications
Item Value
Country of Origin DE
Modular version true
Voltage type for actuating AC/DC
Rated operation power NEMA 147.09975 kW
Rated control supply voltage Us at DC 42 V
Rated operation power at AC-3, 400 V 132 kW
Rated operation power at AC-4, 400 V 132 kW
Rated control supply voltage Us at AC 50HZ 42 V
Rated control supply voltage Us at AC 60HZ 42 V
Rated operation current Ie at AC-1, 400 V 330 A
Rated operation current Ie at AC-3, 400 V 265 A
Rated operation current Ie at AC-4, 400 V 230 A
Number of main contacts as normally open contact 3
Number of auxiliary contacts as normally open contact 2
Number of auxiliary contacts as normally closed contact 2
Type of electrical connection of main circuit Rail connection
