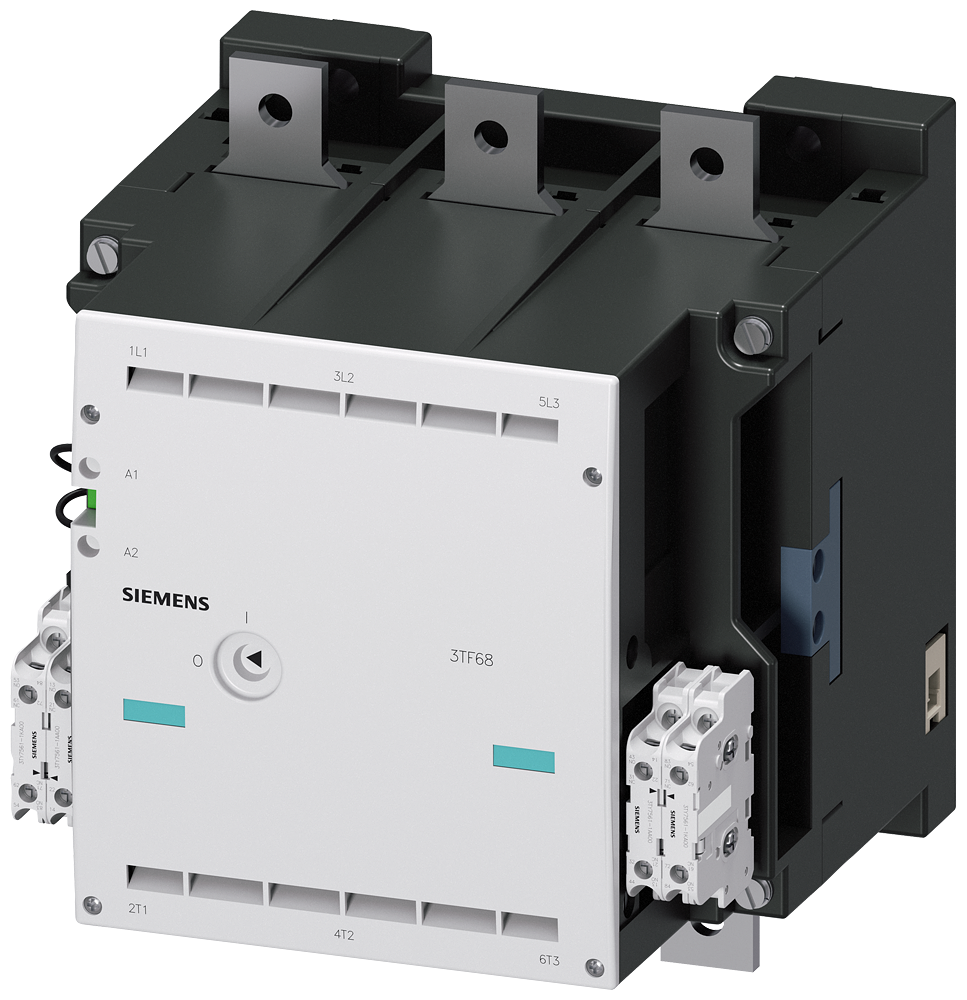

3TF6844-0CF7 - CONTACTOR VAC S14 630A 110-132VAC 3P BAR
by Siemens
Original price
$3,232.01
-
Original price
$3,232.01
Original price
$3,232.01
$3,232.01
-
$3,232.01
Current price
$3,232.01
Contactor,IEC,Sirius Vacuum,3,Non-Reversing 110-132 50/60Hz AC Coil Frame Size S14,630A Panel Mount Lugs(not included) Terminals 4NO <(>&<)> 4NC Auxiliaries Varister Suppression Main Conducting Path UL File E31519 in Vol.1 Sec.43
| Item | Value |
|---|---|
| Country of Origin | TR |
| Modular version | true |
| Voltage type for actuating | AC |
| Rated operation power NEMA | 389.814337499 kW |
| Rated operation power at AC-3, 400 V | 355 kW |
| Rated operation current Ie at AC-1, 400 V | 700 A |
| Rated operation current Ie at AC-3, 400 V | 630 A |
| Rated operation current Ie at AC-4, 400 V | 610 A |
| Rated control supply voltage Us at AC 50HZ | 110 V |
| Rated control supply voltage Us at AC 60HZ | 110 V |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 4 |
| Number of auxiliary contacts as normally closed contact | 4 |
| Type of electrical connection of main circuit | Rail connection |
