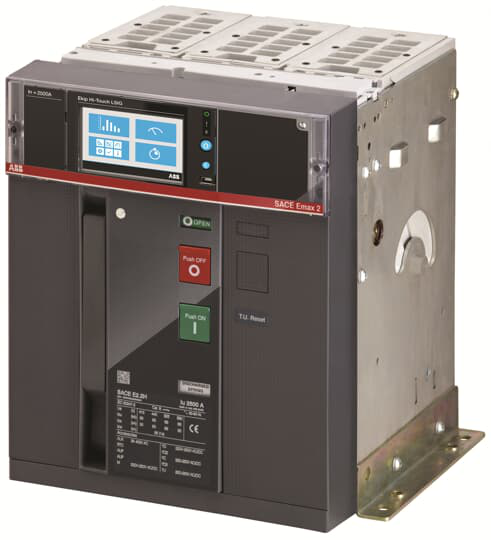

1SDA070989R1 - E2.2B 1600 Ekip Hi-Touch LSIG 3p F HR
by ABB
Original price
$7,602.61
-
Original price
$7,602.61
Original price
$7,602.61
$7,602.61
-
$7,602.61
Current price
$7,602.61
C.BREAKER SACE EMAX2 E2.2B 1600 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2361 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | eb7feea5-9751-458d-8ad2-2f63c31b0c39 Italy (IT) |
| Simplified SCIP | e1db96b3-5492-46c9-ae1c-9a32cfdecbcf Hungary (HU)86597123-1e27-4c84-8e03-ea4803b54259 Belgium (BE)4545fc80-6fc9-429f-8292-454476ea1cc0 Spain (ES)69356f5b-b697-499d-8179-dbaf58a5188b Croatia (HR)1a4cd8ef-39fe-4cc6-934f-25395fa79318 France (FR)f3683179-729b-4c85-8fe7-16ad0aeafc94 Bulgaria (BG)75bd7e9a-af34-41a3-8327-92ba501082d7 Germany (DE)e86db012-e385-46ec-8fda-a38f38951a40 Germany (DE)2a675041-a659-41a6-8d4f-85a4c5738a21 Estonia (EE)538a17bf-00d9-485d-9034-2564ca9b8539 Germany (DE)eb2c05ab-6090-4100-bf53-5efc3b3939f2 Germany (DE)12d7c73a-f48a-4346-bf9d-9212112e148e Denmark (DK)4bd7cc76-55e5-4812-82fd-c72e322590b1 Sweden (SE)a835f983-de3a-4de4-b091-98e5d06e9b7b Netherlands (NL)d4e7bf9b-072a-451a-9a9e-8312884c8b7a Finland (FI)6ebd6feb-64d9-499b-b4b5-ceaf27966be1 Greece (GR)baf10d4d-a262-4a55-8ca0-0556d99f9872 Belgium (BE)3b144dd9-fb2b-45fb-b678-2d32f43298d3 Hungary (HU)dc61e717-fc94-453e-b8cf-83ce746e6d67 France (FR)3d3e76b4-9125-4346-9f6b-c3ea98d9e37f Poland (PL)d7320a1a-1ca3-498c-b720-9776c12ae0f4 Norway (NO)9d6603c2-a8ca-458b-9db4-b69b8b5b31e1 Poland (PL)6861973e-4676-4928-93d7-47b27372581c Sweden (SE)319e9960-06d7-4d9c-ad99-510cc417547d Czech Republic (CZ)7e099766-9d02-4cd6-aeb2-5e28f8277a7a Poland (PL)5c2224b0-a1ea-46e8-9399-bd2a3a8e534a Portugal (PT) |
| Item | Value |
|---|---|
| Order Code US and Canada | Z2BSEJBK200A000000XX |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 276 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 41 kg |
| Item | Value |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour |
| Mechanical Durability | 25000 cycle60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | 136 W |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kAfor 3 s 42 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(525 V AC) 42 kA(690 V AC) 42 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0083 |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
