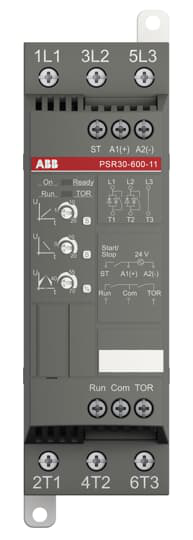

The softstarter PSR30-600-11 has a rated maximum operational current of 30 A with an operating voltage span from 208...600 V AC. The rated control voltage is 24 V AC/DC. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
Technical
| Item |
Value |
| Rated Operational Voltage |
208 ... 600 V AC |
| Rated Control Supply Voltage (Us) |
24 V AC/DC |
| Rated Control Circuit Voltage (Uc) |
24 V DC |
| Rated Frequency (f) |
50/60 HzMain Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) |
(230 V) 7.5 kW(400 V) 15 kW(500 V) 18.5 kW |
| Rated Operational Current - In-Line Connection (Ie) |
30 A |
| Service Factor Percentage |
100 % |
| Overload Protection |
Recommended MS132 25 ... 32 |
| Integrated Electronic Overload |
No |
| Adjustable Rated Motor Current Ie |
No |
| Starting Capacity at Maximum Rated Current Ie |
4xIe for 6s |
| Ramp Time |
0 ... 20 second [unit of time]1 ... 10 second [unit of time] |
| Initial Voltage During Start |
40 ... 70 % |
| Step Down Voltage Special Ramp |
100 ... 60 % |
| Current Limit Function |
No |
| Switch for Inside Delta Connection |
No |
| Run Signal Relay |
Yes |
| By-pass Signal Relay |
Yes |
| Fault Signal Relay |
No |
| Overload Signal Relay |
No |
| Signal Indication Completed Start Ramp (LED) |
Green |
| Signal Indication Ready to Start/Standby ON (LED) |
Green |
| Signal Indication Running R (LED) |
Green |
| Signal Indication Ramping Up/Down (LED) |
Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time |
10 |
| Communication |
FiledBusPlug(Optional) |
| Degree of Protection |
IP20 |
| Terminal Type |
Screw Terminals |
| Connecting Capacity Main Circuit |
Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit |
1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm²Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit |
Rigid 1 x 0.75 ... 2.5 mm² |
| Tightening Torque |
Control Circuit 0.6 N·mMain Circuit 2.3 N·mSupply Circuit 0.6 N·m |
| Product Main Type |
PSR30 |
| Function |
Soft start with voltage rampSoft stop with voltage ramp |
