1SCA022860R6740 - OT1600E04P SWITCH-DISCONNECTOR
by ABB
Original price
$2,023.81
-
Original price
$2,023.81
Original price
$2,023.81
$2,023.81
-
$2,023.81
Current price
$2,023.81

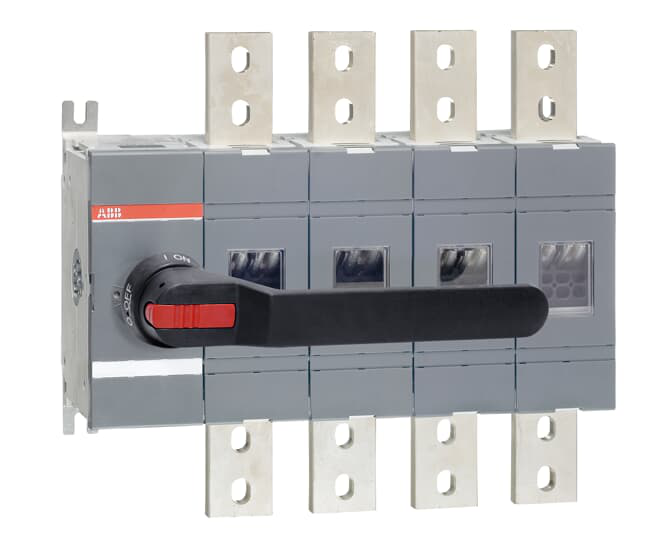

4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
Environmental Information | 1SCC301233D0201 |
REACH Declaration | 1SCC011021D0201 |
RoHS Information | 1SCC011020D0201 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85365080 |
Country of Origin | Finland (FI) |
Item | Value |
---|---|
Product Net Width | 414.5 mm |
Product Net Height | 372 mm |
Product Net Depth / Length | 167 mm |
Product Net Weight | 22.3 kg |
Item | Value |
---|---|
Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A(1000 V) 1600 A |
Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A(500 V) 1600 A(690 V) 1600 A |
Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A |
Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW(500 V) 900 kW(690 V) 1200 kW |
Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
Rated Operational Voltage | Main Circuit 1000 V |
Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA(1250 A fuse, 500 V) 100 kA |
Power Loss | at Rated Operating Conditions per Pole 48 W |
Pollution Degree | 3 |
Handle Color | Black |
Handle Type | Handle and shaft included |
Fourth Pole Position | Right Side |
Fourth Pole Type | Switched - Simultaneous Function |
Switches Operating Mechanism | Mechanism at the End of the Switch04 (Left Side) |
Distance Between Phases | Standard |
Position of Line Terminals | Top In - Bottom OutBottom In - Top Out |
Operating Mode | Front operated |
Standards | IEC 60947-3 |
Special Functions | No |
Mounting Type | Base mounting |
Number of Poles | 4 |
Degree of Protection | Front IP00 |
Terminal Type | Lug terminals |
Terminal Width | 50 mm |
Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
Mechanical Durability | 6000 |
Lock Type | Yes |
Item | Value |
---|---|
Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
Item | Value |
---|---|
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Environmental Information | 1SCC301233D0201 |
Item | Value |
---|---|
Object Classification Code | Q |
ETIM 9 | EC000216 - Switch disconnector (low voltage) |
eClass | V11.1 : 27371403 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
E-Number (Finland) | 3661770 |
